TRANSCORE運輸閱讀器AI1422E技術參數
COMMUNICATION | |
Available Frequency Ranges | FCC: 902-928MHz, Fixed Frequency |
Protocols | American Trucking Association (ATA) |
POWER REQUIREMENTS | |
Input Voltage | 24VDC-110VDC ± 30% |
PHYSICAL | |
Dimensions | Size: 19.0 x 1.75 x 9.0 in (48.3 x 4.4 x 22.9 cm) |
ENVIRONMENTAL | |
Operating Temperature | -40oF to +158oF (-40oC to +70oC) |
Storage Temperature | -67oF to +185oF (-55oC to +85oC) |
Humidity | 0 to 95% non-condensing over operating temperature range |
TRANSCORE運輸閱讀器AI1422E產品介紹
The AI1422E retains familiar features for backwards compatibility, adding a wide-input DC power supply (24-110V), software-controlled RF power, and more communication options. The AI1422E boasts Ethernet and RS422 communications for long-distance applications as well as the standard dual-RS232 ports for compatibility. All interfaces support simultaneous host communications in real-time for passing tag data to the host computer.

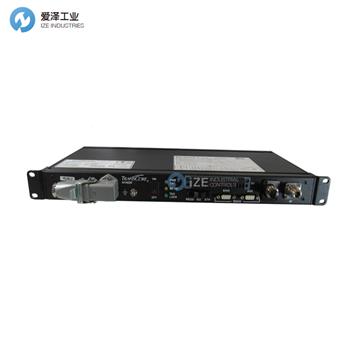

The AI1422E Transportation Reader is a rack-mountable unit designed for installation in an on-train electronic cabinet, with an under-train antenna and tags mounted at fixed positions on the railbed or guideway sleepers.
The AI1422E Transportation Reader sends tag data to the train’s host computer for processing.
The AI1422E offers both 915MHz and ETSI compliant models for global use. The 915MHz model is compatible with TransCore’s 915MHz transportation tags and rail antennas. The ETSI model is compatible with TransCore’s suite of ETSI compliant tags and antennas.
AI1422E 保留了熟悉的向后兼容性功能，增加了寬輸入直流電源 (24-110V)、軟件控制射頻電源和更多通信選項。AI1422E 擁有用于長距離應用的以太網和 RS422 通信以及用于兼容性的標準雙RS232端口。所有接口都支持實時同步主機通信，以便將標簽數據傳遞到主機。
AI1422E Transportation Reader是一種機架安裝式裝置，設計用于安裝在火車電子柜中，帶有火車下天線和安裝在軌床或?qū)к壵砟旧瞎潭ㄎ恢玫臉撕灐?/p>
AI1422E交通閱讀器將標簽數據發送至列車主機進行處理。
AI1422E提供915MHz和ETSI兼容型號供全球使用。915MHz型號與TransCore的915MHz 運輸標簽和鐵路天線兼容。ETSI 模型與TransCore的ETSI 兼容標簽和天線套件兼容。
TRANSCORE運輸閱讀器其他常用型號：
TRANSCORE AI1422E
TRANSCORE Transportation Reader NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向制造工業提供高端制造技術和設備。代理經營世界優質的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于TRANSCORE運輸閱讀器AI1422E的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for TRANSCORE products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website:jjxdch.cn.
