APPLIED MOTION驅動器STR2技術參數
SPECIFICATIONS | |
Supply Voltage | 12-48 VDC |
Supply Voltage Type | DC |
Control Modes | Step & Direction |
Output Current | 0.300 - 2.200 A/phase |
Encoder Feedback | No |
Step Resolution | Full |
Idle Current Reduction | 50% or 90% |
Setup Method | DIP switches |
Digital Inputs | 3 |
Digital Outputs | 1 |
Operating Temperature Range | 0 to 85 °C |
Ambient Temperature Range | 0 to 50 °C |
Ambient Humidity | 90% max, non-condensing |
Status LEDs | 1 red, 1 green |
Circuit Protection | Short circuit, Over-voltage, Under-voltage, Over-temp |
Dimensions | 92.71 x 56.134 x 20.828 mm |
Output Current Range, Continuous | 0.000 - 3.900 A/phase |
Weight | 0.13 kg |
Legacy Part Number | 5000-235 |
APPLIED MOTION驅動器STR2介紹

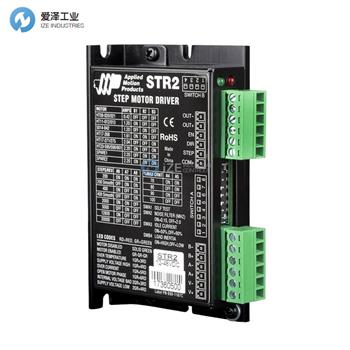

STR2 步進驅動器是一款超緊湊的數字步進和方向驅動器，非常適合需要兩相步進電機基本步進和方向控制的 OEM 應用。 STR2 向步進電機輸出高達 2.2 A/相的電流，并與多種已選定的兩相步進電機兼容，以優化驅動器和電機的性能。
STR2 驅動器具有微步進性能和諧振電流控制。 反諧振以電子方式抑制電機和系統諧振，從而在較寬的速度范圍內提高電機的平滑度和扭矩。
每個 STR2 步進電機驅動器都可以在步進和方向或脈沖/脈沖控制模式下運行。 通過移動位于驅動器蓋下的跳線來在這兩種模式之間進行選擇。 每個 STR2 驅動器都可以使用 1.8° 步進電機（1/100 步）微步至 20,000 步/轉，甚至可以在命令脈沖分辨率較低時微步步進電機。 此功能稱為微步仿真。 所有驅動器設置均通過驅動器側面的 DIP 開關完成，包括電機選擇、運行電流、空閑電流和步長分辨率。
The STR2 stepper drive is an ultra compact, digital step & direction drive, great for OEM applications requiring basic step & direction control of a 2-phase step motor. The STR2 outputs up to 2.2 A/phase to the step motor, and is compatible with a variety of 2-phase step motors that have been selected to optimize performance of both the drive and motor.
The STR2 drive features advanced microstepping performance and sophisticated current control with anti-resonance. Anti-resonance electronically damps motor and system resonances, which improves motor smoothness and torque over a wide speed range.
Each STR2 step motor drive operates in either Step & Direction or Pulse/Pulse control mode. Selecting between these two modes is done by moving a jumper located under the cover of the drive. Each STR2 drive can microstep up to 20,000 steps/rev with a 1.8o step motor (1/100 step), and can even microstep the step motor when the command pulses are low resolution. This feature is called Microstep Emulation. All drive setup is done via dip switches on the side of the drive, including motor selection, running current, idle current, and step resolution.
