BWB維修包17008-00-101用于HMB系列閥上

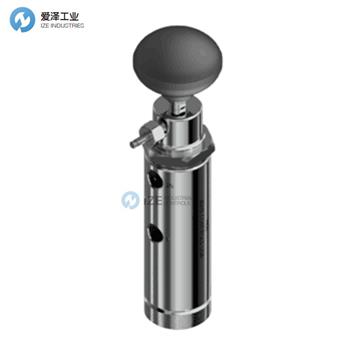

BWB閥HMB系列產品介紹
The BWB "HMB" is a 3 way, normally closed, pilot operated, manual reset relay with manual lockout. It is normally installed near an actuator or in a control panel, and receives hydraulic or pneumatic instrument pressure (Port P) from a safety system component such as a sensing device.
During normal operation, The knob or indicator is manually pulled out, allowing instrument pressure (Port P) to hold the relay in the open position; supply pressure (Port B) passes through the outlet (Port C), and on to the actuator or system.
When the sensing device is actuated, it will bleed the instrument pressure (Port A) from the relay and the spring will push the relay into the closed position; supply pressure (Port B) becomes blocked while, the outlet (Port C) is exhausted through (Port A), thus closing the actuator or system.
Should supply pressure (Port B) be required to open the actuator or system before instrument pressure (Port P) is returned, the lockout assembly may be used. The knob or indicator is manually pulled out and the lockout stem engaged. This allows supply pressure (Port B) to pass through the outlet (Port C) and on to the actuator or system. When instrument pressure (Port P) is returned the lockout stem will automatically release and the relay will resume normal operating conditions.
FEATURES
316 Stainless Steel Materials
100 PSI (6.89 bar) MAWP Pilot Pressure
150 PSI (10.34 bar) MAWP Thru Pressure
1/4” FNPT Threaded Ports
Can be changed from OCS to CCS by moving O-ring (16)
into the top groove on Lower Spool (4). (See figure 1-1)
Inlet to Outlet Orifice Size : .250” (6.35mm)
Outlet to Exhaust Orifice Size: .250” (6.35mm)
SERVICE CLASSIFICATION
Standard service: Buna Low Temp O-rings
Temperature range available upon request
Special Service: O Ring compounds to Customer Requirements
BWB“HMB”是一種 3 路、常閉、先導式、帶手動鎖定的手動復位繼電器。 它通常安裝在執行器附近或控制面板中，并從傳感裝置等安全系統組件接收液壓或氣動儀表壓力（端口 P）。
在正常操作過程中，手動拉出旋鈕或指示器，允許儀表壓力（端口 P）將繼電器保持在打開位置； 供應壓力（端口 B）通過出口（端口 C），然后到達執行器或系統。
當傳感裝置啟動時，它將從繼電器中釋放儀表壓力（端口 A），彈簧將繼電器推至關閉位置； 供應壓力（B 口）被阻塞，而出口（C 口）通過（A 口）排氣，從而關閉執行器或系統。
如果在儀器壓力（端口 P）返回之前需要供給壓力（端口 B）打開執行器或系統，則可以使用鎖定組件。 手動拉出旋鈕或指示器并接合鎖定桿。 這允許供應壓力（端口 B）通過出口（端口 C）到達執行器或系統。 當儀器壓力（端口 P）返回時，鎖定桿將自動釋放，繼電器將恢復正常操作條件。
特征
316不銹鋼材質
100 PSI (6.89 bar) MAWP 先導壓力
150 PSI (10.34 bar) MAWP 直通壓力
1/4” FNPT 螺紋端口
可通過移動 O 形環 (16) 從 OCS 更改為 CCS
進入下閥芯 (4) 的頂部凹槽。 （見圖1-1）
入口到出口孔尺寸：.250” (6.35mm)
出口到排氣孔尺寸：.250” (6.35mm)
服務分類
標準服務：Buna 低溫 O 型圈
可根據要求提供溫度范圍
特殊服務：O 型圈化合物符合客戶要求
BWB維修包其他常用型號：
BWB 17008-00-101
BWB 10076-01-101
BWB 11033-00-101
BWB 11100-00-101
BWB 10076-01
BWB Repair Kit NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向制造工業提供高端制造技術和設備。代理經營世界優質的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于BWB維修包17008-00-101的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for BWB products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website:jjxdch.cn.
BWB維修包17008-00-101產品介紹
