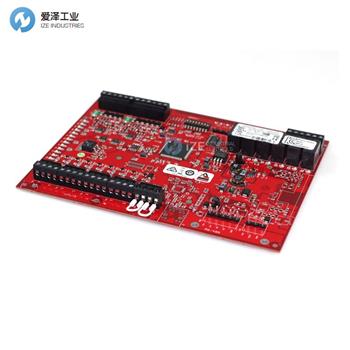

LENEL接口模塊LNL-1320 SERIES 3規格介紹
Specifications | |
Primary Power | 12 to 24Vdc ±10%, 550mA maximum (plus reader current) |
Outputs | 6 outputs, Form-C contacts: Normally Open (NO) Contact: 5A @ 30 Vdc, Normally Closed (NC) Contact: 3A @ 30 Vdc |
Inputs | 8 unsupervised/supervised, standard EOL: 1k/1k ohm, 1% 1/4 watt |
Reader Interface | Reader power: 12Vdc ±10% regulated, 300mA maximum each reader (jumper selectable and input voltage (VIN) must be 20Vdc minimum) or 12 to 24Vdc ±10% (input voltage passed through) 300mA maximum each reader |
Reader Port Compatibility | Wiegand Data 1/Data 0 |
Mechanical | Dimension: 6” (152mm)W x 8” (203mm)L x 1” (25mm)H |
Environmental Temperature | Operating: 32°F to 158°F (0°C to +70°C) |
Humidity | 5% to 95% RHNC |
Compliance Approvals | FCC Part 15, CE, RoHS, UL 294, UL 1076, ULC CSA-C22.2, CAN/ULC-S319-05, cUL/ORD-C1076 |
LENEL接口模塊LNL-1320 SERIES 3產品介紹
LenelS2TM 為訪問控制解決方案提供雙讀卡器接口 (DRI) 模塊。 支持大多數使用標準 Wiegand Data1/Data0 或時鐘/數據通信的門禁讀卡器、鍵盤或帶鍵盤的讀卡器，以及支持雙向 RS-485 開放式監督設備協議 (OSDP?) 的讀卡器。 連接到 DRI 的所有讀卡器都支持鎖定、解鎖和設施代碼離線訪問模式。 每個 DRI 支持多達 16 種不同的卡格式以及磁卡和韋根卡格式的發行代碼。
DRI 在智能系統控制器 (ISC) 和連接到接口的讀卡器之間提供了重要的連接。 多達 32 個 DRI 模塊可以使用 RS485 2 線或 4 線通信進行多點傳輸，每個端口距離 ISC 最多 4,000 英尺。 每個 DRI 模塊都單獨編址，以提高 OnGuard? 訪問控制軟件應用程序的報告能力。 DRI 包括八個輸入，支持常開、常閉、監控和非監控電路。 此外，六個輸出繼電器支持故障安全或故障安全操作。
LenelS2TM offers a Dual Reader Interface (DRI) module for access control solutions. Most access control card readers, keypads, or readers with keypads that use standard Wiegand Data1/Data0 or Clock/Data communication are supported, as are those that support the bidirectional RS-485 Open Supervised Device Protocol (OSDP?). Lock, unlock, and facility code offline access modes are supported on all readers connected to the DRI. Each DRI supports up to 16 different card formats as well as issue codes for both magnetic and Wiegand card formats.
The DRI provides a vital link between the Intelligent System Controller (ISC) and the card reader attached to the interface. As many as 32 DRI modules can be multidropped using RS485 2-wire or 4-wire communication up to 4,000 feet per port away from the ISC. Each DRI module is individually addressed for increased reporting capabilities with OnGuard? access control software applications. The DRI includes eight inputs that support normally open, normally closed, supervised, and non-supervised circuits. In addition, six output relays support fail-safe or fail-secure operation.
LENEL接口模塊LNL系列其他常用型號：
LENEL LNL-1320 SERIES 3
LENEL LNL-X3300
LENEL LNL-X2210
LENEL LNL-1200 Series 3
LENEL LNL-1100 Series 3
LENEL LNL-1300 Series 3
LENEL LNL-1324E
LENEL LNL-X2220
LENEL Interface Module NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業集產品開發、設計、制造、銷售、于一體，代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于LENEL接口模塊LNL-1320 SERIES 3的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
