M-SYSTEM信號調節器M5VF系列技術參數
GENERAL SPECIFICATIONS | |
Construction: | Terminal block |
Connection: | M3.5 screw terminals (torque 0.8 N·m) |
Screw terminal: | Nickel-plated steel (standard) or stainless steel |
Housing material: | Flame-resistant resin (black) |
Isolation: | Input to output to power |
Overrange output: | Approx. -10 to +110 % at 1 – 5 V |
Zero adjustment: | -2 to +2 % (front) (±1 % with the input suffix codes 4W and 5W selected) |
Span adjustment: | 98 to 102 % (front) (99 to 101 % with the input suffix codes 4W and 5W selected.) |
Power indicator LED: | Green LED turns on when the power is supplied. |
INSTALLATION | |
Power Consumption | |
?AC: | Approx. 2 VA at 100 V |
?DC: | Approx. 2 W |
Operating temperature: | -5 to +55°C (23 to 131°F) |
Operating humidity: | 0 to 90 %RH (non-condensing) |
Mounting: | DIN rail |
Weight: | 80 g (2.8 oz) |
PERFORMANCE in percentage of span | |
Accuracy: | ±0.1 % |
Temp. coefficient: | ±0.015 %/°C (±0.008 %/°F) |
Response time: | ≤ 150 μsec. (0 – 90 %) |
Line voltage effect: | ±0.1 % over voltage range |
Insulation resistance: | ≥ 100 MΩ with 500 V DC |
Dielectric strength (input to output to power to ground) | |
DC powered: | 2000 V AC @1 minute |
AC powered: | 1500 V AC @1 minute |

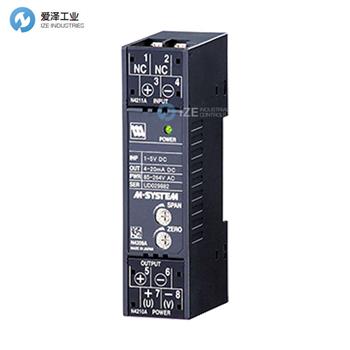

M-SYSTEM信號調節器M5VF系列介紹
量程固定、成本低、響應快
? 特定輸入范圍在±30V以內；帶電阻的電流輸入
? 85-264 或 24 V DC 供電（CE 為 24 V DC 類型）
? 快速響應 <150 微秒。
Fixed range, low cost, fast response
? Specific input range within ±30 V; current input with a resistor
? 85-264 or 24 V DC powered (CE for 24 V DC type)
? Fast response <150 microsec.

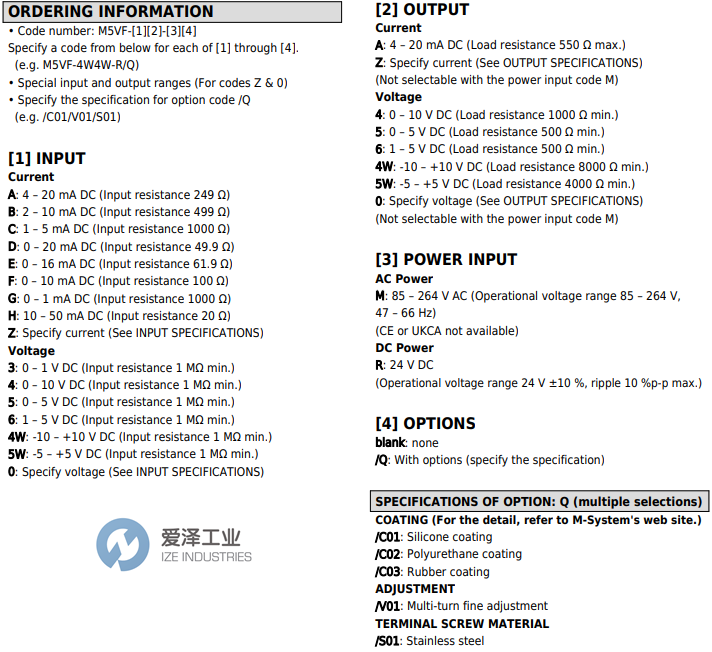

M-SYSTEM信號調節器M5VF系列選型
M-SYSTEM信號調節器M5VF系列其他常用型號：
M-SYSTEM M5VF-D5W-R
M-SYSTEM M5VF-4W4W-R
M-SYSTEM M5VF-A4-R
M-SYSTEM M5VF-A4-R
M-SYSTEM M5VF-AA-R
