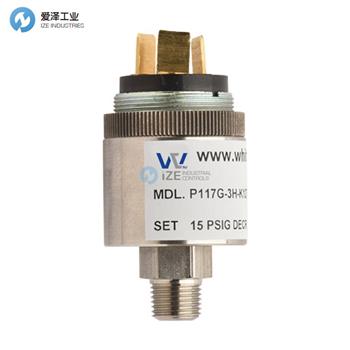

WHITMAN CONTROLS壓力開關P117G系列產品介紹
More Information | |
Switch Application | S.S.Body P117 (1-500psig) |
Is OEM Replacement Part? | No |
Switch Availability | Custom / 2 - 4 Weeks |
Set Point Pressure Range | 1 To 100 |
Circuit Type | SPDT |
Set Point Options | SPDT Customer Set |
Maximum Amperage And Voltage | 1 Amp 125 VAC Gold |
Electrical Interface | L - 12" Leads - Insulated Base |
Maximum System Pressure | 100 PSIG |
Fitting | 1/8" NPT Male |
Corrosive Media | Yes |
Wet/Dry/Submerged | Standard (Dry Use) |
Wetted Materials | Stainless & Loctite |
Additional Options | Many Options Are Available. If It's Not Here, Call Us. |
Standard Fitting Size | 1/8"NPT |
Shipping Weight Ounces | 6 Ozs |
WHITMAN CONTROLS壓力開關P117G系列介紹
Key Features:
Miniature size
Stainless steel body
Set point options: Factory set, field adjustable, or a combination
Extensive operating temperature range
Wide range of electrical interfaces available
SPDT or SPST availability
Specifications:
Set point range: 0.80 to 500 PSIG
Max System pressure: 150% of sensor capacity
Temperature range: -65°F to +225°F (-54°C to +107°C)
Amps: 5 Amps Max
Sensor Element: Capsule
Weight: 3.0 oz (varies slightly with electrical interface selection)
Cycling: 3H/5H – Not to exceed 60 CPM, 10H/25H/50H – Not to exceed 20 CPM
Wetted Parts:
Capsule: 17-7 PH
Seal: Loctite #271
Fitting: 303 Stainless steel
Standard Thread: ?-27 NPT male
Optional Threads: ?-18 NPT male 7/16-20 UNF male
主要特征：
微型尺寸
不銹鋼機身
設置點選項：出廠設置、現場可調或組合
廣泛的工作溫度范圍
提供范圍廣泛的電氣接口
SPDT或SPST可用性
規格：
設定點范圍：0.80至500 PSIG
最大系統壓力：傳感器容量的150%
溫度范圍：-65°F至 +225°F（-54°C 至 +107°C）
電流：最大5安培
傳感器元件：氣室
重量：3.0 oz（因電氣接口選擇而略有不同）
循環量：3H/5H –不超過60 CPM，10H/25H/50H – 不超過20 CPM
連接部件：
氣室：17-7 PH
密封件：樂泰牌#271
接頭：303不銹鋼
標準螺紋：?-27 NPT外螺紋
可選螺紋：?-18 NPT外螺紋7/16-20 UNF外螺紋
WHITMAN CONTROLS壓力開關P117G系列其他型號列舉
WHITMAN CONTROLS P117G-10H-K11L-X30427
WHITMAN CONTROLS P117G-10H-C12L
WHITMAN CONTROLS Pressure switch NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向先進制造工業提供高端制造技術和設備。代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于WHITMAN CONTROLS壓力開關P117G-10H-K11L-X30427的疑問，請隨時與我們電聯，（021-3100 6702），我們將盡全力解決您的問題。
If you have any question for WHITMAN CONTROLS products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website: jjxdch.cn.
WHITMAN CONTROLS壓力開關P117G系列P117G-10H-K11L-X30427產品介紹
