ASBG蝶閥B100BD06EPBA26技術參數
Code | B100BD06EPBA26 |

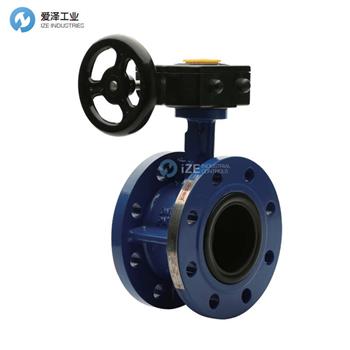

Product | Butterfly valve wafer type |
Control | Pneumatic aluminum cylinder |
Type of actuator | Double acting |
Body | Cast iron lined polyester coating |
Trim | 316SS |
Seat | EPDM |
Packing | PTFE |
Pressure | PN16/150LB |
Connection | ANSI Flange |
Caliber | 12" |
ASBG蝶閥B100系列介紹
B100 系列閥門不僅具有衛生級閥門的特點，而且具有獨特的內部流量特性和能力。Aisenberg 的 B100 系列閥門是帶法蘭定位孔的對夾版本。
一體式設計。閥板的閥板邊緣經球形加工和手工拋光，具有操作扭矩低、閥座壽命長、密封性好等特點。這種設計完全防止了衛生行業中灰塵顆粒和細菌的聚集。閥桿 閥板表面也可以包一層丁腈橡膠或乙丙橡膠，防止金屬表面腐蝕。閥板和閥桿的“薄板”設計可以提高Cv值（比普通芯軸高50%）和 壓力恢復能力越大，所以壓降能量越小。
B100 series valves not only have the characteristics of sanitary valves, but also has a unique internal flow characteristics and capabilities.. Aisenberg's Series B100 valve is a wafer version with flange locating holes.
One-piece design.The disc edge of the valve plate has characteristics of low operating torque, seat long life and good sealing by the spherical processing and manual polishing.This design completely prevents the collection of dust particles and bacteria in the sanitary industry.Stem and valve plate surface can also be wrapped with a layer of NBR or EPR, to prevent corrosion of metal surface.The "thin plate" design of the valve plate and stem can increase the Cv value (50% higher than the common mandrel) and the greater pressure recovery capability, so the pressure drop is less energy.

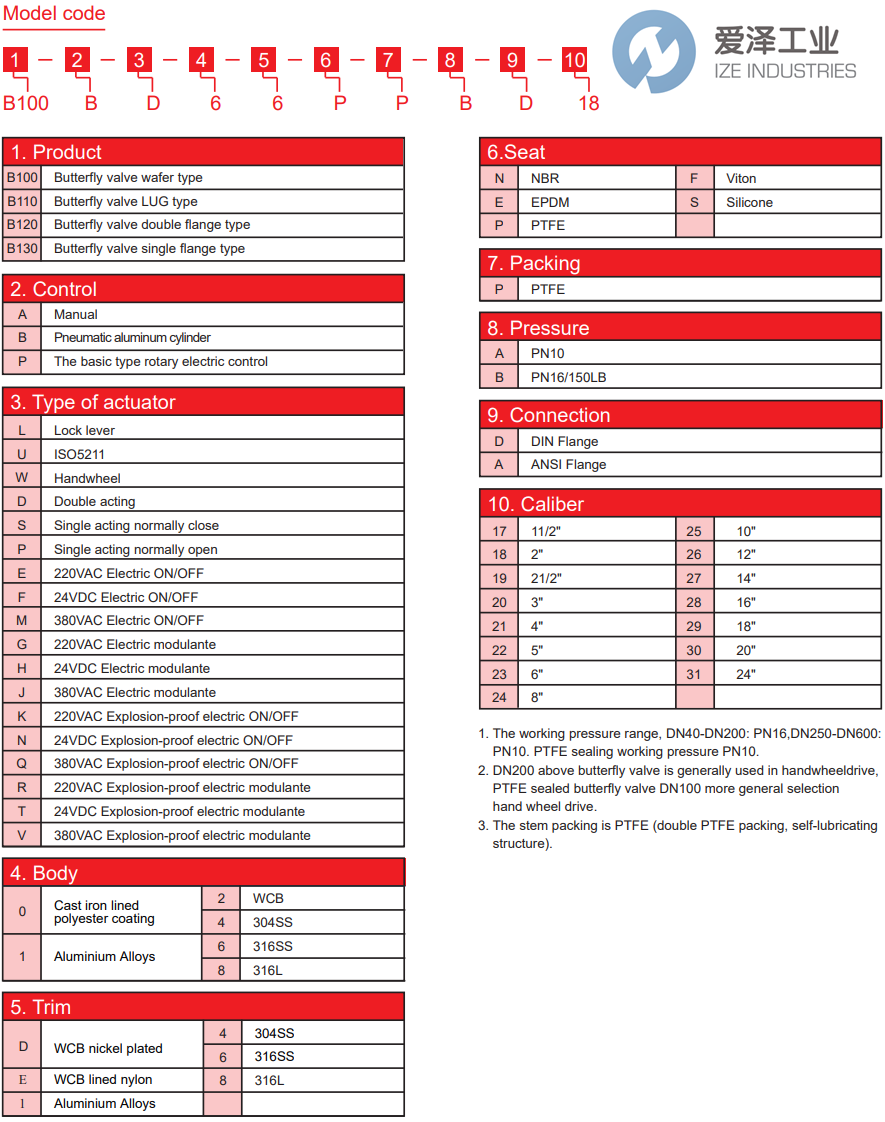

ASBG蝶閥B100系列選型
ASBG蝶閥B100系列其他常用型號：
ASBG B100BD04PPBD21
ASBG B400AL2FPPBA22
ASBG B100BD04PPBD23
ASBG B100BD04PPBD20
ASBG B100BD06EPBA26
