ANALOG DEVICES模塊5B32-01產品參數
Model | 5B32-01 |
Input Range | 4 mA to 20 mA |
Output Range | 0 V to +5 V |
ANALOG DEVICES模塊5B32-01產品介紹

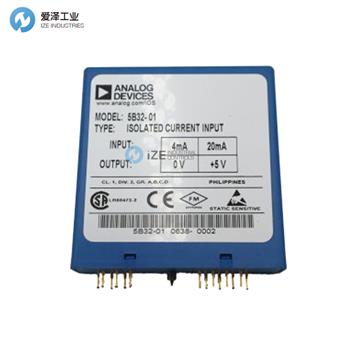

The 5B32 is a single-channel signal conditioning module that amplifies, protects, filters and isolates its analog input. The module measures a process-current input signal of 4-20 mA or 0-20 mA by reading the voltage across an external precision 20 Ω resistor (supplied) and generating an output of 0 to +5 V. Extra current conversion resistors are available as accessories (See Model AC1362 in the Accessories section).
Note that the 5B32 module circuitry can withstand 240 V rms at the input screw-terminals, thereby shielding computer-side circuitry from field-side overvoltage conditions. In addition, all 5B32 Series modules are mix-and-match and hot swappable, so can be inserted or removed from any socket in the same backplane without powering down the system.
Inside the 5B32 Series Module
A chopper-stabilized input amplifier provides low drift and stable gain. At the amplifier input, a stable, laser-trimmed zero-scale input offset is subtracted from the input signal to set the zero-scale value for the 4-20 mA range. For user convenience, the zero can be optionally factory-set to meet custom needs. This allows suppression of a zero-scale input value many times larger than the total span for precise expanded-scale measurements.
Internal multi-pole lowpass filtering with a four-Hz cutoff (-3dB) enhances normal-mode (noise on signal) and common-mode (noise on signal return) rejection at 50/60 Hz, enabling accurate measurement of small signals in high electrical noise.
Signal isolation by transformer coupling uses a proprietary modulation technique for linear, stable and reliable performance. The differential input circuit on the field side is fully floating, eliminating the need for input grounding. A demodulator on the computer side of the signal transformer recovers the original signal, which is then filtered and buffered to provide a low-noise, low-impedance output signal. The output common must be kept within ±3 Vdc of power common.
5B32 是一款單通道信號調理模塊，可放大、保護、過濾和隔離其模擬輸入。 該模塊通過讀取外部精密 20 Ω 電阻器（已提供）兩端的電壓并生成 0 至 +5 V 的輸出來測量 4-20 mA 或 0-20 mA 的過程電流輸入信號?？商峁╊~外的電流轉換電阻器 作為附件（參見附件部分的型號 AC1362）。
請注意，5B32 模塊電路可以在輸入螺釘端子處承受 240 V rms，從而保護計算機側電路免受現場過壓的影響。 此外，所有 5B32 系列模塊都是混合搭配和熱插拔的，因此可以在不關閉系統電源的情況下從同一背板中的任何插座插入或拔出。
5B32 系列模塊內部
輸入放大器提供低漂移和穩定增益。在放大器輸入端，從輸入信號中減去穩定的激光調整零電平輸入偏移，以設置 4-20 mA 范圍內的零電平值。為了方便用戶，零可以選擇出廠設置以滿足自定義需求。 這允許抑制比精確擴展刻度測量的總跨度大很多倍的零刻度輸入值。
具有 4 Hz 截止頻率 (-3dB) 的內部多極點低通濾波可增強 50/60 Hz 的常模（信號噪聲）和共模（信號返回噪聲）抑制，從而能夠準確測量高頻率下的小信號 電噪聲。
通過變壓器耦合進行信號隔離，使用專有調制技術實現線性、穩定和可靠的性能。 現場側的差分輸入電路完全浮動，無需輸入接地。 信號變壓器計算機端的解調器恢復原始信號，然后對其進行濾波和緩沖以提供低噪聲、低阻抗的輸出信號。輸出端必須保持在電源公共端的 ±3 Vdc 范圍內。
