MANTRACOURT信號調節器SGA系列技術參數
Electrical Specifications | |
Power supply (SGA/A only) | 110/230 V AC |
Power supply DC (SGA/A and SGA/D) | 18 to 24 V DC |
Isolated Power Supply (IS1224 option) | 9 to 36 V DC |
Power supply current DC - (depends on loading) | 90 mA typical |
Bridge excitation | 5 and 10 V |
Bridge resistance (minimum for 10V Excitation) | 85 Ohms |
Bridge sensitivity | 0.06 to 30 mV/V |
Offset adjustment | ±80 %FR |
Maximum Voltage Output load | 2 mA |
Maximum Current Output load | 500 Ohms |
Bandwidth (No filter and > 2 mV/V) | DC – 6000 Hz |
Filter cut-off (Switchable ranges) | 1- 5000 Hz |
Zero temperature coefficient (@2.5 mV/V) | 0.002 %/oC |
Span temperature coefficient | 0.007 %/oC |
Linearity | 0.03 %FR |
Output options | ±10 V, ±5 V, 0-10 V, 0-5 V, |
Environmental | |
Operating temperature range | -10 to 50 oC |
Storage temperature range | -20 to 70 oC |
Maximum Humidity | 95% NonCondensing |
IP Rating | IP67/Nema4 |
MANTRACOURT信號調節器SGA系列介紹
SGA 提供寬帶寬和寬輸入信號范圍。 該設備可由交流或直流電源供電，為多達 4 x 350 歐姆的應變計電橋提供激勵。
經調節的輸出信號可以從 0-20 mA、4-20 mA、0-10 V、0-5 V、±5 V 或 ±10 V 中選擇。選項包括。 隔離直流電源、DIN 導軌安裝和 OEM 模塊。
應變計信號調節器 (SGA) 采用防水 IP65 NEMA 4 隔板安裝外殼提供，堅固耐用且完全符合 CE 標準。
特點與優勢
? 適用于幾乎任何模擬應用
? 非常穩定的電橋激勵
? 可選擇的靈敏度
? 高頻過濾
? 用戶可選擇的模擬輸出
? 橋梁完工模塊現已推出

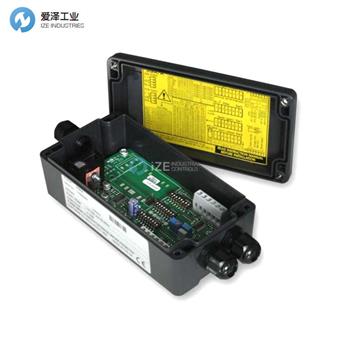

The SGA offers a wide bandwidth and a wide input signal range. The device can be powered from AC or DC supplies providing excitation for up to 4 x 350 ohm strain gauge bridges.
The conditioned output signal can be selected from 0-20 mA, 4-20 mA, 0-10 V, 0-5 V, ±5 V or ±10 V. Options include. Isolated DC supply, DIN rail mount and OEM module.
The Strain Gauge Amplifier (SGA) is supplied in a waterproof IP65 NEMA 4 bulkhead mountable case and is robust and fully CE compliant.
Features & Benefits
? Suitable for almost any analogue application
? Very stable bridge excitation
? Selectable sensitivity
? High frequency filtering
? User selectable analogue outputs
? Bridge completion module now available
MANTRACOURT信號調節器SGA系列其他常用型號：
MANTRACOURT SGA-A
MANTRACOURT SGA-D
