PHYTRON驅動器1-STEP-DRIVE-5A-48V技術規格
Specification | |
Mechanical | |
Design | SIMATIC ET 200?S plastic housing |
Dimensions [WxHx D] | 30 x 81 x 50 mm |
Weight | 80 g |
Mounting position | Optional |
Mounting | Plug-in in SIMATIC ET 200?S terminal modules |
Features | |
Stepper motors | Suitable for bipolar control of 2 phase stepper motors with 4, (6) or 8 lead wiring |
Superior main station | SIMATIC ET 200?S |
Power supply | 24 to 48 VDC |
Reverse polarity protection | Yes |
Phase current | 5 APEAK (short circuit-proof, overload protected) |
Motor current adjustment | 20 mA increments |
Step resolutions | Full step, half step, 1/2.5, 1/4, 1/5, 1/8, 1/10, 1/16, 1/20, 1/32, 1/64, 1/128, 1/256, 1/512 microstep |
Maximum step frequency | 510,000 steps/s |
Physical resolution | Approx. 102,400 positions per revolution (0.0035°/step) with a 200 step motor. |
Chopper frequency | 18, 20, 22 or 25 kHz selectable |
Current consumption (max.) | 3 ADC at 5 APEAK |
Mechanical output power | Up to the 200 W range |
Cable length - motor | Shielded: 50 m max. |
Cable length - digital inputs | Shielded: 100 m max. |
Diagnostic LEDs | ? SF (group error) |
Controller modes | ? Relative positioning |
Security modes | Security modes, such as e. g. Safe Torque Off (STO) from IEC 61508-2 are not directly compatible |
Mechanism of the communication via backplane bus | Synchronous: Control interface, feedback interface |
PHYTRON驅動器介紹

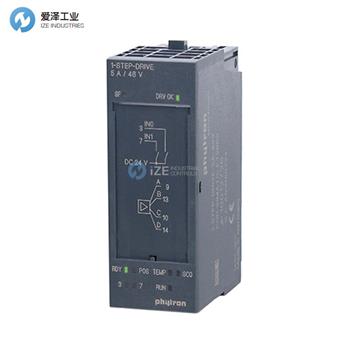

1-STEP-DRIVE
Stepper motor driver with integrated power stage for SIMATIC ET 200?S in coordination with SIEMENS
Controlling and driving stepper motors within a modular PLC system: The 1-STEP-DRIVE technology guarantees a high-precision current adjustment and enables fine positioning up to 1/512 step with an absolute and non-cumulative error of about 0.0015° (Approx. 102,400 positions per revolution (0.0035°/step) with a 200 step motor)
Technical Details
Stepper motor controller with integrated power stage for SIMATIC ET 200?S
The 1-STEP-DRIVE-5A-48V module successfully completed the system compliance test performed by SIEMENS.
Suitable for bipolar control of 2 phase stepper motors with 4-,(6-) or 8 lead wiring
5 APEAK Phase current with 20 mA adjustable increments
Power supply from 24 to 48 VDC
up to 1/512 microstep
Physical resolution: approx. 102,400 positions per revolution (0.0035°/step). An encoder with a counter should be considered for micro positioning.
Maximum step frequency: 510,000 steps/sec
Chopper frequency selectable: 18, 20, 22 or 25 kHz
2 digital inputs for limit and reference switches
Diagnostic LEDs (over current, over temperature, driving instruction or Motor is running, etc.)
Controller modes: relative and absolute positioning, revolution mode, move to a reference point,...
Online controller parameterising and diagnostic
Programming via STEP?7, TIA Portal? (V12 to V14)
Operating temperature: 0 to +60 °C
Short-circuit-proof, overload-protected
Approval: CE
Included in delivery: CD-ROM incl. configuration file (HSP), application example and manual (pdf)
Important: the configuration files are not down-compatible.
SIMATIC?, ET 200?S, STEP?7 and TIA Portal? are trade marks of the SIEMENS AG.
1步驅動
與 SIEMENS 協作，用于 SIMATIC ET 200?S 的帶有集成功率級的步進電機驅動器
在模塊化 PLC 系統中控制和驅動步進電機：1-STEP-DRIVE 技術可確保高精度電流調節，并可實現高達 1/512 步的精確定位，絕對和非累積誤差約為 0.0015°（約 每轉 102,400 個位置（0.0035°/步）使用 200 步電機）
技術細節
用于 SIMATIC ET 200?S 的帶集成功率級的步進電機控制器
1-STEP-DRIVE-5A-48V模塊順利完成了SIEMENS進行的系統一致性測試。
適用于帶 4-、(6-) 或 8 引線接線的 2 相步進電機的雙極控制
5 APEAK 相電流，增量為 20 mA 可調
電源從 24 到 48 VDC
高達 1/512 微步
物理分辨率：約 每轉 102,400 個位置（0.0035°/步）。 微定位應考慮帶計數器的編碼器。
最大步進頻率：510,000 步/秒
可選擇斬波頻率：18、20、22 或 25 kHz
2 個用于限位和參考開關的數字輸入
診斷 LED（過電流、過溫度、驅動指令或電機正在運行等）
控制器模式：相對和絕對定位、旋轉模式、移動到參考點……
在線控制器參數化和診斷
通過 STEP?7、TIA Portal?（V12 至 V14）進行編程
工作溫度：0 至 +60 °C
短路保護，過載保護
批準：CE
交付包括： CD-ROM 包括。 配置文件 (HSP)、應用示例和手冊 (pdf)
重要提示：配置文件不向下兼容。
SIMATIC?、ET 200?S、STEP?7 和 TIA Portal? 是 SIEMENS AG 的商標。
