HYDAC壓力傳感器HDA4445-A-600-000規格
Technical data | |
Approval | UL approval |
Electrical connection | DIN EN 175301-803 /3p + PE |
Mechanical connection | G1/4 A ISO 1179-2 / external |
Output signal | 4 to 20mA (2 conductors) |
Accuracy | 1.00% max = 0.5% typ. |
Pressure range max value | 600 |
Pressure range min value | 0 |
Pressure unit | BAR |
Type of pressure | Relative |
HYDAC壓力傳感器HDA4400系列描述
Description:

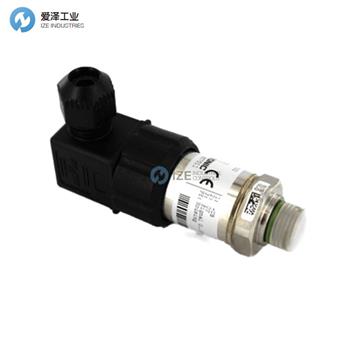

This pressure transmitter has been specially developed for shipbuilding applications and is based on the HDA 4000 series.
With its stainless steel measurement cell and thin-film strain gauge, the HDA 4400 is designed to measure relative pressures in the high pressure range.
The evaluation electronics converts the measured pressure into a proportional analogue signal of 4 .. 20 mA.
The electronic module is completely potted to protect it against humidity, vibrations and shock, and is enclosed in a solid stainless steel housing.
For use in the shipping industry, these pressure transmitters have been approved by the following organisations.
描述：
該壓力變送器專為造船應用而開發，基于HDA 4000系列。
HDA 4400配備不銹鋼測量元件和薄膜應變計，專為測量高壓范圍內的相對壓力而設計。
電子設備將測得的壓力轉換為 4 .. 20 mA 的比例模擬信號。
電子模塊完全密封以防止潮濕、振動和沖擊，并封裝在堅固的不銹鋼外殼中。
為了在航運業中使用，這些壓力變送器已獲得多個組織的批準。
HYDAC壓力傳感器HDA4400系列其他常用型號：
HYDAC HDA 4445-A-400-000
HYDAC HDA 4444-A-016-000
HYDAC HDA 4445-B-060-000
HYDAC HDA 4444-A-400-000
HYDAC HDA 4445-B-250-000
HYDAC HDA 4445-B-400-000
HYDAC HDA 4444-B-600-000
HYDAC HDA 4445-A-250-000
HYDAC HDA 4445-B-100-000
HYDAC HDA 4475-B-1500-000(PSI)
HYDAC HDA 4475-B-3000-000(PSI)
HYDAC HDA 4475-B-5000-000(PSI)
HYDAC HDA 4475-B-6000-000(PSI)
HYDAC transmitter NEW + ORIGINAL+ ONE YEAR WARRANTY
