AIRCOM調節器PR系列技術參數
General technical features | |
Description | 3-port/2-way pressure regulator with proportional magnet, |
Mounting position | any, preferably upright |
Protection class | IP 54 with standard connector, IP 65 with special connector |
Shock resistance | 3G |
Temperature range | 0 °C up to 50 °C / 32 °F to 122 °F, high temperature version on request |
Material | |
Pneumatic features | Body: brass (G1∕8) and aluminium (G1/4, G1/2 u. G1) Inner valve: brass and SST |
Media | dry, lubricated, unlubricated and 50 μm filtered compressed air or non-corrosive gases |
Supply pressure | min. 10% above outlet pressure |
Flow rate | at 6 bar inlet pressure and 5 bar outlet pressure |
Exhaust | same nominal size as on inlet valve, thus same relief capacity |
Air consumption | without air consumption |
Electrical features | |
Supply voltage | 24 V DC + 15% - 10%, residual ripple max. 10% |
Power consumption | 12 W at G1∕8, 22 W at G1∕4, 30 W at G1/2, 44 W at G1 |
Current consumption | 0.5A at G1∕8, 1.0A at G1∕4, 1.25A at G1/2, 1.7A at G1 |
Command signal | 0 … 10 V, 0 … 20 mA, 4 … 20 mA, digital or Profibus DB rising curve as standard, optionally declining curve |
Impedance | 100 kΩ at voltage signal (0.1 mA current consumption) 500 kΩ at current signal |
Electrical connector | circular plug according to DIN 43651, |
Accuracy | |
Linearity/Hysteresis | < 0,1% FS |
Response sensitivity | < 0.1% FS |
Repeatability | < 0.1% FS |
Over all accuracy | ± 0.5% |
Regulating time | < 1 s over the range, 70 ms at 10 to 90% or 90 to 10% of the range |
Adjustment | |
Zero point | calibration ± 10% FS via potentiometer P2 |
Range | calibration + 5% FS or -10% FS via potentiometer P1 |
Amplification | calibration 1:1 up to 1:10 via potentiometer P7 |
AIRCOM調節器PR系列介紹
氣動比例壓力調節器根據電氣指令輸入信號按比例控制出口壓力。 它包括一個完整的閉環伺服系統，位于一個緊湊的整體式組件中，帶有比例電磁閥、電子調節器和內部壓力傳感器。
在此過程中，出口壓力被轉換為成比例的電信號，并與輸入信號進行比較。 如果出口壓力超過預設值，閥門會排氣至所需壓力。
閥門沒有連續排放。 在沒有輸入信號或電源電壓的情況下，閥門會排氣。 設定點電位計的電源由比例調節器通過連接器針腳 5 提供。

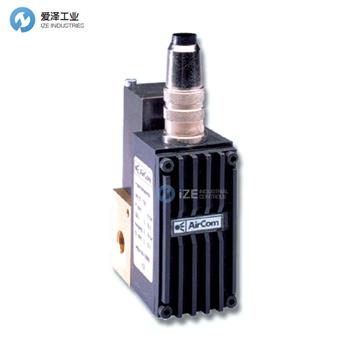

The pneumatic proportional pressure regulator controls the outlet pressure in proportion to an electrical command input signal. It comprises a complete closed loop servo system in a compact monoblock assembly with proportional solenoid valve, electronic regulator and internal pressure transducer.
In the process, the outlet pressure is transformed into a proportional electrical signal and compared with the input signal. If the outlet pressure exceeds the preset setpoint, the valve exhausts down to the pressure desired.
The valve has no constant bleed. At absence of input signal or supply voltage the valve exhausts. The power supply of the setpoint potentiometer is provided by the proportional regulator via connector pin number 5.
