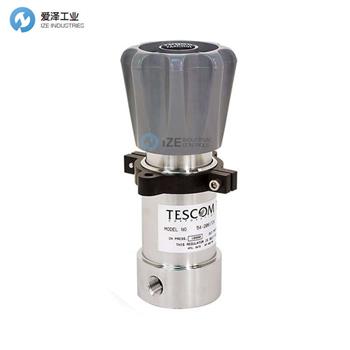

TESCOM壓力調節器54-2066D28技術參數
Code | 54-2066D28 |
BASIC SERIES | 54-20 |
BODY AND BONNET MATERIAL | 6 – 316 Stainless Steel |
OUTLET PRESSURE RANGES | 6 – 5-800 psig; 0.35-55.2 bar |
SOFT GOODS MATERIAL | D – |
INLET AND OUTLET PORT TYPE | 2 - NPTF |
INLET AND OUTLET PORT SIZE | 8 – 1/2" |
TESCOM壓力調節器54-2000系列介紹
54-2000 系列減壓調節器適用于 10,000 psig / 690 bar 入口和出口液壓應用。隔離和捕獲的排氣口允許方便的下游減壓調整。硬化不銹鋼閥座和閥桿在嚴苛應用中具有出色的耐磨性。非常適合用于井口控制面板、海底閥門驅動、液壓動力裝置 (HPU) 和組件測試。
特征
適用于 15,000 和 20,000 psig / 1034 和 1379 bar 的特殊型號
隔離式排氣口，可輕松調節任一方向的壓力
主閥芯
高強度手把
提供墨盒式型號
可提供 NACE 兼容設計
兼容 TESCOM 氣動執行器和 ER5000 電動氣動控制器
活塞感應式設計確保安全可靠
54-2000 Series pressure reducing regulator is suitable for 10,000 psig / 690 bar inlet and outlet hydraulic applications. Segregated and captured vent allows for convenient downstream pressure reduction adjustments. Hardened Stainless Steel seat and stem provide excellent wear resistance in harsh applications. Ideal for use in wellhead control panels, subsea valve actuations, Hydraulic Power Units (HPU) and component testing.
Features
Special models available for 15,000 and 20,000 psig / 1034 and 1379 bar
Segregated vent for easy pressure adjustments in either direction
Main valve cartridge
High-impact handknob
Cartridge style models are available
NACE compatible designs are available
Compatible with TESCOM air actuators and ER5000 Electropneumatic Controller
Piston-sensed design ensures safety and reliability

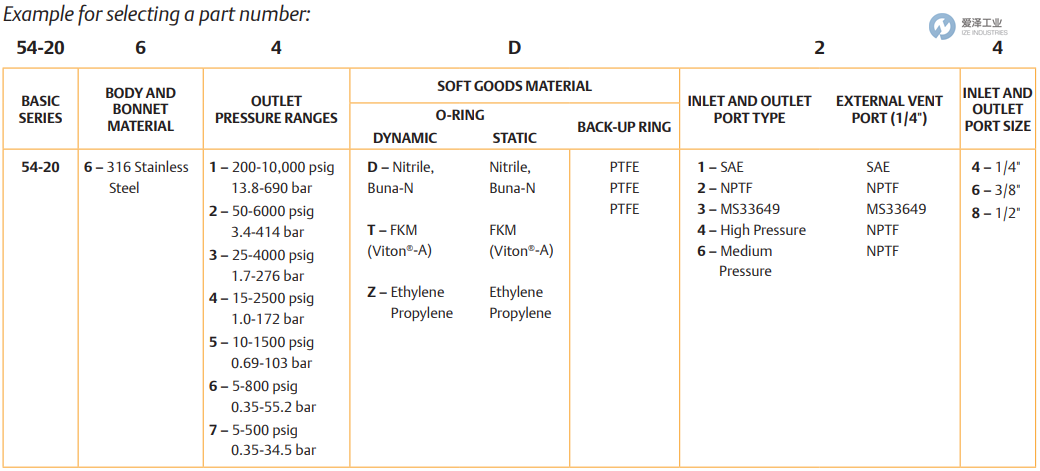

TESCOM壓力調節器54-2000系列選型
TESCOM壓力調節器54-2000系列其他常用型號：
TESCOM 54-2023T24
TESCOM 54-2061D24
TESCOM 54-2061D26
TESCOM 54-2063D26
TESCOM 54-2064D26
TESCOM 54-2065D26
TESCOM 54-2066D26
TESCOM 54-2067D26
TESCOM 54-2066D28
TESCOM Pressure Regulator NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向制造工業提供高端制造技術和設備。代理經營世界優質的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于TESCOM壓力調節器54-2066D28的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for TESCOM products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website:jjxdch.cn.
TESCOM壓力調節器54-2000系列54-2066D28技術參數及選型
