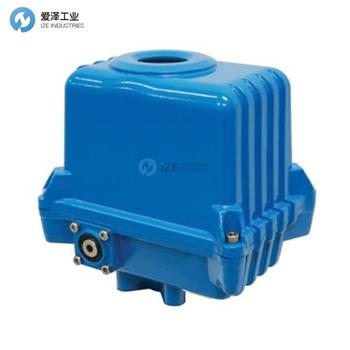

NOAH閥門執行器SA09X系列技術參數
STANDARD SPECIFICATION | |
Indicator | Flat type |
Ambient temperature | -20°C to 70°C |
Limit switches | 2 Open/Close + Dry contact2 Open/Close |
Manual operation | By L-wrench (6mm hexagon) |
Space heater | 5W (110/230VAC, 24VDC) |
Lubrication | Grease moly (EP type) |
Surface treatment | Anodizing |
Enclosure | Weatherproof enclosure IP67 Nema4 and 6 |
Power supply | AC 10230V 1PH +10% 50160Hz, DC24(AC24V) |
Travel angle | 90C土5" (extention : upto 270) |
Self locking | Provided by means of worm gearing |
Conduit entries | Two PF 1/2" (Option : PG13.5, NPT1/2") |
Consist of Matenals | Steel, Aluminium aloy, bronze |
Extemal coating | Polyester (TGlC-free) |
NOAH閥門執行器SA09X系列介紹
隔爆外殼
設計輕巧緊湊，具有更大的多功能性。
獨特的外殼設計允許安裝各種選項，而無需額外的外部外殼成本。
為了幫助保護組件并延長執行器的使用壽命，標配了一個 5 瓦的防冷凝加熱器。
行程電機開關末端包括兩個額外的干式觸點，用于輔助指示。
提供熱保護器以防止電機過熱。
蝸輪傳動消除了反向驅動的可能性和對電機制動器的需要。
專為以任何方向安裝而設計。
在斷電的情況下，提供手動超馳功能來定位閥門。
提供 3 個 ISO 安裝墊以提供更大的靈活性。
Flameproof Enclosure
Engineered to be lightweight and compact for greater versatility.
The unique housing desgin allows various options to be installed without the additional cost of an external enclosure.
To help protect the components and extend the actuator’s life, a 5-watt anti-condensation heater is included as standard.
Included with the end of travel motor switches are two additional dry-contacts for auxiliary indication.
A thermal protector is provided to protect the motor from over heating.
The worm gear drive eliminates the possibility of back drive and the need for motor brakes.
Designed for mounting in any orientation.
In case of a power loss, the manual over-ride is provided for positioning the valve.
3 ISO mounting pads are provided for greater flexibility.
NOAH閥門執行器SA09X系列其他常用型號：
NOAH SA09X-DF
NOAH SA-05X
NOAH SA09X
