NASON壓力開關CD系列技術參數
Operating Specifications | |
Set Point Range | 10 — 7500 PSI (.69 — 517 Bar) |
Set Point Tolerance | ±5 PSI or 5% (.34 Bar) |
Maximum Operating Pressure | 1000 PSI (Ranges 1 — 3) (69 Bar) |
Proof Pressure | 3000 PSI (Ranges 1 — 3) (206 Bar) |
Differential | 10 — 20% |
Current Rating | 5 A @ 250 VAC 5 A @ 30 VDC (Resistive) |
Media Connection | Standard: Brass (Optional: Nickel Plating, |
Circuit Form | SPST-NO, SPST-NC or SPDT |
Diaphragm Material | Buna (Ranges 1 — 3) |
Cycle Life | 1 Million |
Operating Temperature | -20°F - +220°F |
Unit Weight | .47 lbs (noryl adjustment knob); .70 lbs (metal adjustment knob) |
NASON壓力開關CD系列介紹
易于定制的 CD 可調高壓開關允許八個調節范圍 10–7500 PSI，并且可以配置為更加環保。這款速動壓力開關上的長壽命彈性體隔膜可防止蠕動，甚至可以撥入設置以實現一致、精確的調節。CD 活塞壓力開關有多種基材可供選擇，包括黃銅、鍍鎳、303 SS 和 316 SS。
長壽命彈性隔膜（范圍 1-3）
久經考驗的密封活塞傳感器（范圍 4-8）
高品質快動開關
現場可調
輕松定制
NEMA 4, 13

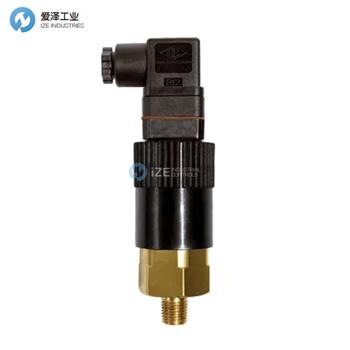

The easily customizable CD adjustable high-pressure switch allows eight adjustment ranges 10–7500 PSI, and can be configured to be even more environmentally safe. A long-life elastomer diaphragm on this snap-action pressure switch prevents creeping, and you can even dial in settings for consistent, precise adjustability. The CD piston pressure switch comes in a variety of base material options, including brass, nickel-plated, 303 SS and 316 SS.
Long-life elastomer diaphragm (Ranges 1-3)
Proven sealed piston sensor (Ranges 4-8)
High-quality snap action switch
Field-adjustable
Easily customized
NEMA 4, 13

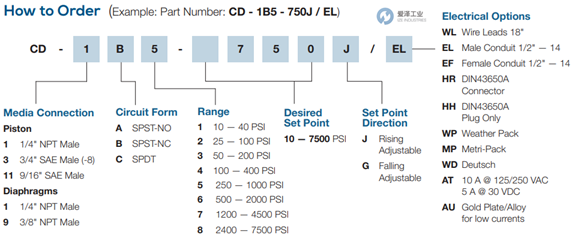

NASON壓力開關CD系列選型
NASON壓力開關CD系列其他常用型號：
NASON CD-1C6-1000J/EL
NASON CD-1C5-750G/HR
NASON CD-1A7-3000J/HR
NASON CD-1C6-750G/HR
NASON CD-1C4-200G/6WL378
NASON CD-6A-150R/WD263
NASON CD-1C7-2000J/HR-193
NASON CD-1B6-1000J/HR
NASON CD-6C7-2500J/HH
NASON CD-1C4-190J/HR
NASON CD-1C7-1800J/HH
NASON CD-6C6-1000J/WD419
NASON PRESSURE SWITCH NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向制造工業提供高端制造技術和設備。代理經營世界優質的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于NASON壓力開關CD-6C6-1000J/WD419的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for NASON products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website:jjxdch.cn.
NASON壓力開關CD系列CD-6C6-1000J/WD419技術參數及選型
