ABNOX計量閥AXDV-C2 4192302技術參數
Technical Data | |
Dosing range [cm3] | 0.010 - 0.200 |
Description | Attention! The smallest metering can be achieved only under optimal conditions! |
Input medium specification | Lubricants up to NLGI 3 / max. 1'000'000 mPa.s |
Min. / max. workingpressure medium inlet [bar] | 20/200 |
Connection medium inlet internal thread | 1/8'' BSP |
Connection medium inlet external thread | 1/8'' BSP |
Connection medium outlet internal thread | M5 / With Dispensing Tip Adapter LUER-Connection |
Compressed air quality | ISO 8573-1:2020 [6:4:4] |
Optimum pneumatic operatingpressure [bar] | 6.0 |
Min. pneumatic operatingpressure [bar] | 5.0 |
Max. pneumatic operatingpressure [bar] | 7.0 |
Pneumatic connection internal thread | M2.5 for hose ?4/2 mm |
Fastening thread | M4 |
Weight [kg] | 0.50 |
ABNOX計量閥AXDV-C2 4192302產品介紹
ABNOX 閥門 AXDVC2允許將微量的復雜潤滑劑精準地放置在設備上，同時維持在低劑量體積下的過程可靠性。以高可重復性，精確和干凈地應用來節省昂貴的潤滑劑。
可以隨時改裝用于監測潤滑脂活塞位置的傳感器。它們提高了潤滑操作的有效性和可靠性，并改進了對生產和裝配過程的控制。

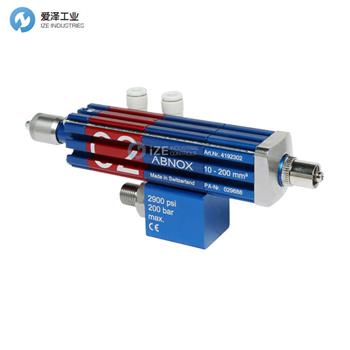

Ultimate process reliability at lowest dosage volumes – made possible by the new ABNOX Valve AXDVC2. It allows accurate placing of minute quantities of your complex lubricant on your device. Precise and clean application at high repeatability means permanent saving of your expensive lubricant!
Sensors to monitor the position of the grease piston may be retrofitted at any time. They increase the effectivity and reliability of the greasing operation, and allow improved control over your production and assembly process.
ABNOX計量閥AXDV-C系列其他常用型號：
ABNOX AXDV-C1 4191802
ABNOX AXDV-C2 4192302
ABNOX AXDV-C3 4192802
ABNOX AXDV-C4 4192902
ABNOX Volumetric Metering Valve NEW + ORIGINAL+ ONE YEAR WARRANTY
