NAGANO壓力變送器KL92系列技術參數
Item | Description |
Fluid | Liquid (Not corrosive for PFA and PTFE) |
Operating conditions | Free from combustible gas or liquid causing fire/explosion under normal condition |
Pressure inlet | Tube connection, various types of nut, male screw (φ1/4, φ3/8, φ1/2 inch) |
Wetted parts material | Diaphragm: PFA |
Pressure range | 0 to 0.3, 0.5 MPa |
Allowable pressure | 0.7 MPa |
Fluid temperature | 10 to 80℃ |
Operating temperature | 10 to 60℃ |
Storage temperature | -10 to 65℃ (No freezing inside the sensor) |
Operating humidity | 25 to 80％RH (No condensation inside the sensor) |
Power source | 24V DC±10％ (2 wire system) |
Output | 2 wire system: 4 to 20mA DC (Load resistance: 500? max. at 24V DC) |
Transmission system | 2 wire system or 3 wire system |
Accuracy | ±1.0％F.S. |
Temperature coefficient | ±0.05％F.S./℃ (Zero) |
Setting system | External adjustment at zero point |
Enclosure | Splash-proof excluding cable end (IP54) |
Chassis material | Polypropylene (PP), fluorocarbon polymers (PTFE, PFA) |
Weight | Approx. 180g (With cable) |
CE compliance | Applicable Standards： EN61326-1：2013； EN61326-2-3：2013 |
NAGANO壓力變送器KL92系列介紹

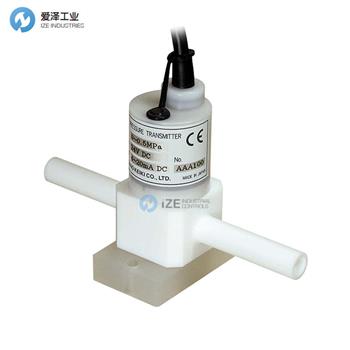

本產品是含氟聚合物膜片密封型壓力變送器。
由于無 O 形環結構最大限度地減少了污染風險和金屬洗脫，因此適用于半導體制造行業的壓力監測。
This product is a fluoropolymers diaphragm seal type pressure transmitter.
As the O-ring-free structure minimizes contamination risk and the elution of metal, it is suitable for pressure monitoring in the semiconductor manufacturing industry.
NAGANO壓力變送器KL92系列其他常用型號：
NAGANO KL92-251
NAGANO KL92-271
