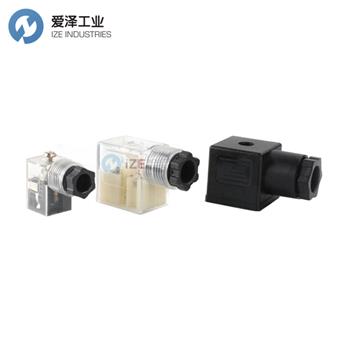

REXROTH電磁閥線圈插頭Connector IP67系列技術參數
Ambient temperature | |
- Standard °C | - 20 to + 100 |
-With indicator lamp/rectifier °C | -20 to + 60 |
Type of protection according to DIN 40050 | IP67 with cable socket mounted and locked |
Operating voltage V | Choose the proper ordering code according to the circuit |
Maximum operating current | |
- Standard A | 16 |
- With rectifier A | 1 or 3 |
Current consumption of LED mA | approx. 10 |
LED | Red |
Number of pins | 2 + PE |
Clamping range for cables having an outer diameter of mm | 5, up to 10 |
Maximum cable cross-section mm2 | 1.5 |

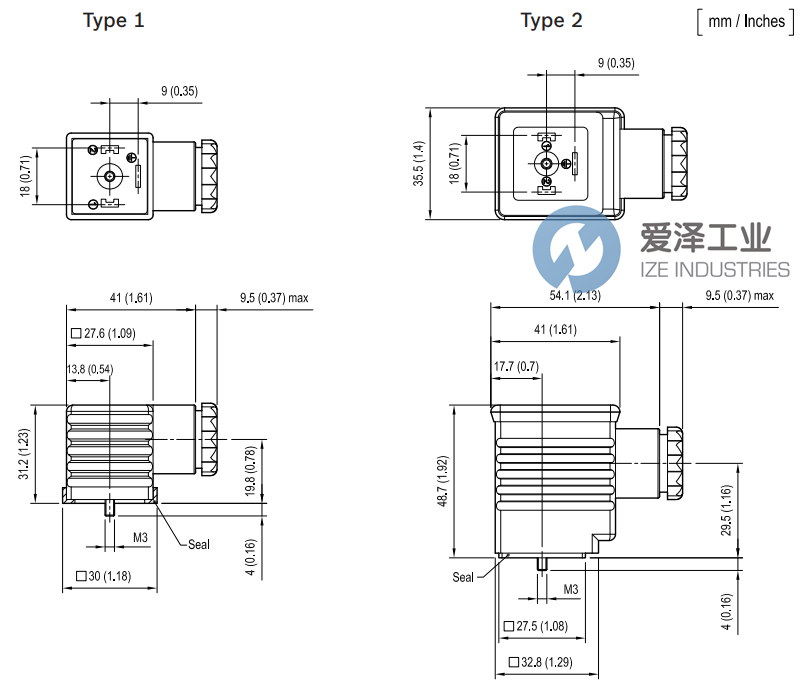

REXROTH電磁閥線圈插頭Connector IP67系列技術尺寸

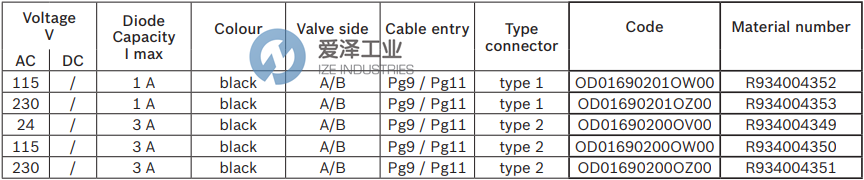

REXROTH電磁閥線圈插頭Connector IP67系列選型
REXROTH電磁閥線圈插頭Connector IP67系列其他常用型號：
REXROTH OD01690201OW00 R934004352
REXROTH OD01690201OZ00 R934004353
REXROTH OD01690200OV00 R934004349
REXROTH OD01690200OW00 R934004350
REXROTH OD01690200OZ00 R934004351
REXROTH COILS NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向制造工業提供高端制造技術和設備。代理經營世界優質的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于REXROTH電磁閥線圈插頭OD01690201OZ00 R934004353的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for REXROTH products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website:jjxdch.cn.
REXROTH電磁閥線圈插頭OD01690201OZ00 R934004353技術參數及選型
