SAMSON閥3709-02系列技術參數
Type 3709-02 | |
Attachment | Hooked up as required |
Supply air max. | 12 bar |
Signal pressure max. | 6 bar |
KVS coefficient approx. | 0.2 |
Set point range (continuously adjustable) | 0.5 to 6 bar |
Switching accuracy | Approx. 0.2 bar à For a set point of 2 bar |
Permissible ambient temperature range | –25 to +80 °C |
Connections | |
Signal pressure output pa | G ?/ ? NPT |
Signal pressure input pe | G ?/ ? NPT |
Supply air pz | G ?/ ? NPT |
Weight | |
Aluminum Approx. | 0.4 kg |
Stainless steel Approx. | 1 kg |
SAMSON閥3709系列介紹
特殊功能
? 氣動鎖止閥
? 當氣源低于調整值或氣源完全失效時，氣動鎖定閥會關閉氣動執行器的信號壓力管路。這會導致執行器無法就位。
? 根據 VDI/VDE 3845 可選地連接到線性或旋轉執行器，或根據需要進行連接。
Special features
? Pneumatic lock-up valve
? Pneumatic lock-up valves shut off the signal pressure line of pneumatic actuators either when the air supply falls below an adjusted value or upon complete air supply failure. This causes the actuator to fail in place.
? Attachment optionally to linear or rotary actuators according to VDI/VDE 3845 or hooked up as required.

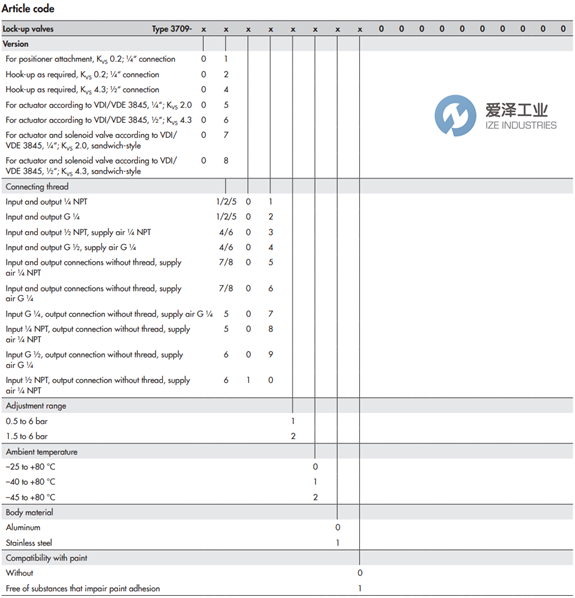

SAMSON閥3709系列選型
SAMSON閥3709系列其他常用型號：
SAMSON 3709-0201
SAMSON 3709-01
SAMSON 3709-02
SAMSON 3709-04
SAMSON 3709-05
SAMSON 3709-06
SAMSON 3709-07
SAMSON 3709-08
