MAX-AIR執行器MT系列產品參數
Specifications: | |
Rotation | 90 Degrees ±10° Adjustment (MT12-MT76) Spring Return or Double Acting |
Torque Range | Up to 47,250 in-lbs (DA) & 22,746 in-lbs (SR) |
Ambient Temp. | -4°F to 176°F Standard (-67°F Low, 300°F High) |
Housing | Anodized Aluminum |
Pinion | Nickel Plated Carbon Steel |
Endcaps & Pistons | Epoxy Coated Die Cast Aluminum |
Fasteners | AISI 304 Stainless Stee |
Seals | BUNA-N Standard (high & low temp options) |
Skates & Wear Bearings | Technopolymer |
Spring Cartridges | Epoxy Coated Steel w/ Technopolymer Cartridge |
Operating Pressure | 40 to 120 PSI |
Max Pressure Rating | 150 PSI |
Operation Media | Gas or Low Pressure Hydraulic Fluid |
Mounting | ISO 5211, NAMUR VDI/VDE 3845 |
Additional Options | DD Pinions, Fast Acting, Extended Travel Stops |
MAX-AIR執行器MT系列產品介紹
MT系列齒條齒輪執行器是一代創新產品，具有纖薄的閥體設計，同時保留了廣泛的選件，可輕松實現閥集成，靈活的定制和相同的可靠操作，并提供保修。 MT系列標配附件的NAMUR安裝件，以及獲得專利的針對打開和關閉位置的±10°調節裝置，都在設定標準。

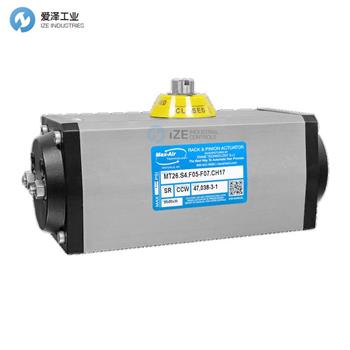

The MT Series rack & pinion actuators are the next generation of innovation featuring a slimmer body design while maintaining extensive options for easy valve integration, flexible customization, and the same reliable operation, all backed by the industry’s best unlimited cycle life warranty. Standard with NAMUR mounting for accessories, along with our patented ±10° adjustment for both the open and closed positions, the MT series is setting the standard.
MAX-AIR執行器MT系列其他常見型號：
MAX-AIR MT40-3VI
MAX-AIR MT40-0EAE31
MAX-AIR MT40-3EAE31
MAX-AIR MT40-0EAE13
MAX-AIR MT40-0EAE13S100
MAX-AIR MT25-5DAD31
MAX-AIR MT25-0DAD31S100
MAX-AIR MT25-4DAD31S100
MAX-AIR MT25-F05/F07
MAX-AIR MT25-ODAD13
MAX-AIR MT25-4DAD31
MAX-AIR Actuator NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向先進制造工業提供高端制造技術和設備。代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于MAX-AIR執行器MT40-0EAE13S100的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for MAX-AIR products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website:jjxdch.cn.
MAX-AIR執行器MT系列MT40-0EAE13S100技術參數介紹
