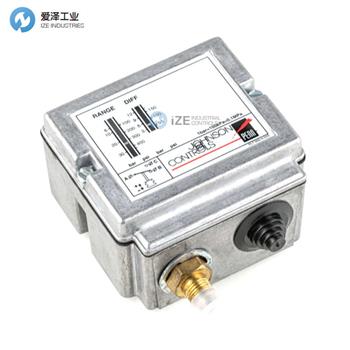

JOHNSON CONTROLS控制器P77系列技術參數
Specification | Description |
Product switch action | SPDT |
Pressure connection | 7/16-20 UNF for 6 mm (1/4 in. SAE external flare fitting), or 914 mm (36 in.) capillary with 6 mm (1/4 in.) flare fitting |
Ambient conditions | Temperature: -40°C to 60oC (-40°F to 140oF) |
Enclosure | Type 1: cast aluminum |
Dimensions | Type 1 enclosure: 88 mm x 80 mm x 53 mm |
(H x W x D) | (3.48 in. x 3.15 in x 2.09 in.) |
Approximate shipping weight | Individual pack: (Type 1 enclosure): 0.5 kg (1.1 lbs) |
Compliance | cULus Listed; UL 60730, File SA516 |
P77 for low pressure applications | |
Purpose of control | Pressure operating control: automatic reset controls |
Construction of control | Electromechanical |
Number of cycles | Automatic: 30,000 cycles |
Method of mounting control | Independently-mounted control |
Type 1 or Type 2 action | Automatic: Type 1; Type 1.C; micro-interruption |
Pollution degree | Category 3 |
Heat and fire resistance category | N/A |
Rated impulse voltage | 4,000 V |
Ball pressure temperature | N/A |
Field wiring rating | 90°C (194°F) |
Maximum overpressure | 20 bar (290 psi) |
Cover screw torque requirements | Tighten enclosure screws to: 1.1–1.4 N·m (10–12 in·lb) |
P77 for high pressure applications | |
Purpose of control | Pressure operating control: automatic reset controls |
Construction of control | Electromechanical |
Number of cycles | Automatic: 30,000 cycles |
Method of mounting control | Independently-mounted control |
Type 1 or Type 2 action | Automatic: Type 1; Type 1.C; micro-interruption |
Pollution degree | Category 3 |
Heat and fire resistance category | N/A |
Rated impulse voltage | 4,000 V |
Ball pressure temperature | N/A |
Field wiring rating | 90°C (194°F) |
Maximum overpressure | 33 bar (479 psi) |
Cover screw torque requirements | Tighten enclosure screws to: 1.1–1.4 N·m (10–12 in·lb) |
JOHNSON CONTROLS控制器P77系列介紹
P77 系列壓力控制器主要設計用于商業制冷和空調應用的高低壓切斷控制、抽空控制、冷凝器風扇循環和容量控制。
這些控件可用于多個壓力范圍，并與大多數常用制冷劑兼容。 它們也可用于其他非腐蝕性流體應用。 控件還提供多種不同的電氣額定值和單刀雙擲 (SPDT) 開關配置。
適用于高壓或低壓應用的 P77 系列控制器專為商業制冷和空調應用的單一壓力控制而設計。
P77 Series Pressure Controls are designed primarily for high and low pressure cut-out control, pump-down control, condenser fan cycling, and capacity control on commercial refrigeration and air-conditioning applications.
These controls are available in several pressure ranges and are compatible with most common refrigerants. They may also be used on other non-corrosive fluid applications. Controls also are available in several different electrical ratings and single-pole, double-throw (SPDT) switch configurations.
The P77 Series Controls for high or low pressure applications are designed for single pressure control of commercial refrigeration and air-conditioning applications.
JOHNSON CONTROLS控制器P77系列其他常用型號：
JOHNSON CONTROLS P77BES-9350
JOHNSON CONTROLS P77BES-9370
JOHNSON CONTROLS P77BES-9750
JOHNSON CONTROLS P77BES-9850
JOHNSON CONTROLS P77BCB-9300
JOHNSON CONTROLS P77BCB-9800
JOHNSON CONTROLS P77BCB-9700
JOHNSON CONTROLS P77BEB-9350
JOHNSON CONTROLS P77BEB-9370
JOHNSON CONTROLS P77BEB-9850
JOHNSON CONTROLS P77BEB-9750
