ADVANCED MOTION CONTROLS伺服驅動器A12A100技術參數
Power Specifications | |
DC Supply Voltage Range VDC | 20 - 80 |
DC Bus Over Voltage Limit VDC | 88 |
DC Bus Under Voltage Limit VDC | 15 |
Maximum Peak Output Current A | 12 |
Maximum Continuous Output Current A 6 | |
Maximum Continuous Output Power at Continuous Current W | 456 |
Maximum Power Dissipation at Continuous Current W | 24 |
Minimum Load Inductance (Line-To-Line) μH | 200 |
Internal Bus Capacitance mF | 141 |
Low Voltage Supply Outputs | ±5 VDC (3 mA) |
Switching Frequency kHz | 38 |
Control Specifications | |
Command Sources | ±10 V Analog |
Feedback Supported | Tachometer (±48 VDC) |
Commutation Methods | Brush Type |
Modes of Operation | Current, Voltage, IR Compensation, Tachometer Velocity |
Motors Supported | Single Phase (Brushed, Voice Coil, Inductive Load) |
Hardware Protection | Over-Current, Over-Temperature, Over-Voltage, Under-Voltage, Short-Circuit (Phase-Phase & Phase-Ground) |
Primary I/O Logic Level | 5V TTL |
Mechanical Specifications | |
Agency Approvals | CE Class A (EMC), CE Class A (LVD), cUL, RoHS II, UL |
Size (H x W x D) mm (in) | 129.3 x 75.8 x 25.1 (5.09 x 2.98 x 0.99) |
Weight g (oz) | 249.5 (8.8) |
Heatsink (Base) Temperature Range °C (°F) | 0 - 65 (32 - 149) |
Storage Temperature Range °C (°F) | -40 - 85 (-40 - 185) |
Form Factor | Panel Mount |
P1 Connector | 16-pin, 2.54 mm spaced, friction lock header |
P2 Connector | 5-port, 5.08 mm spaced, quick disconnect terminal |

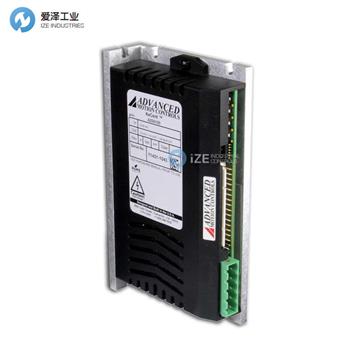

ADVANCED MOTION CONTROLS伺服驅動器A12A100產品介紹
A12A100 PWM 伺服驅動器設計用于以高開關頻率驅動有刷直流電機。單個紅色/綠色 LED 指示運行狀態。該驅動器具有全面的過壓、欠壓、過流、過熱和電機、接地和電源線短路保護。此外，該驅動器可以與數字控制器接口或獨立使用，并且只需要一個未穩壓的直流電源?？梢允褂?14 圈電位器調節環路增益、電流限制、輸入增益和偏移。偏置調節電位器也可作為板載輸入信號用于測試目的。
? 四象限再生運行
? DIP 開關可選模式
? DIP 開關可配置環路調諧
? 可選擇的抑制邏輯
? 可調電流限制
? 高開關頻率
? 差分輸入命令
? 數字故障輸出監視器
? 板載測試電位器
? 偏置調節電位器
? 可調輸入增益
? 驅動器狀態 LED
? 電流監控器輸出
? 限位開關的方向抑制輸入
The A12A100 PWM servo drive is designed to drive brush type DC motors at a high switching frequency. A single red/green LED indicates operating status. The drive is fully protected against over-voltage, undervoltage, over-current, over-heating and short-circuits across motor, ground and power leads. Furthermore, the drive can interface with digital controllers or be used stand-alone, and requires only a single unregulated DC power supply. Loop gain, current limit, input gain and offset can be adjusted using 14-turn potentiometers. The offset adjusting potentiometer can also be used as an on-board input signal for testing purposes.
? Four Quadrant Regenerative Operation
? DIP Switch Selectable Modes
? DIP Switch Configurable Loop Tuning
? Selectable Inhibit Logic
? Adjustable Current Limits
? High Switching Frequency
? Differential Input Command
? Digital Fault Output Monitor
? On-Board Test Potentiometer
? Offset Adjustment Potentiometer
? Adjustable Input Gain
? Drive Status LED
? Current Monitor Output
? Directional Inhibit Inputs for Limit Switches

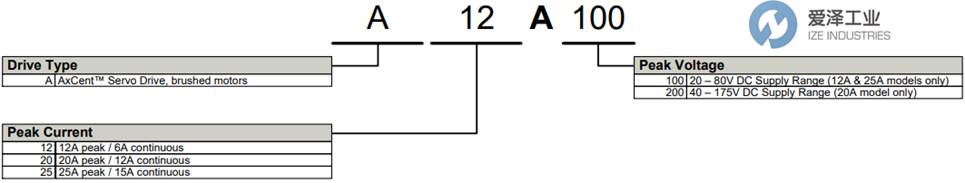

ADVANCED MOTION CONTROLS伺服驅動器AxCent系列選型
ADVANCED MOTION CONTROLS伺服驅動器AxCent系列其他常用型號：
ADVANCED MOTION CONTROLS A12A100
ADVANCED MOTION CONTROLS A25A100
ADVANCED MOTION CONTROLS A20A200
ADVANCED MOTION CONTROLS A25A200
