PHASE驅動器AXN系列技術參數
Power Supply Voltage: | 150 – 500 Vac [50/60 Hz] 3 phase |
DC Power Supply Voltage: | 0 – 800 Vdc |
Auxiliary power Supply: | 20-30 Vdc |
PWM frequency: | from 4 to 16 kHz |
Cooling: | Fan cooled, Water cooled (option) |
Protection degree: | IP20 |
PHASE驅動器AXN系列介紹
AXN系列是具有B6 整流器輸入的獨立設備,輸入電流范圍為9 至 200A(連續工作)。
Ax 表示 4 Arms 和 300 Arms 之間的完整電流范圍,有 6 種尺寸(AxM II、AxN 和 AxW DC),以及多個接口:模擬 (+/-10V)、現場總線(CANOpen 和 EtherCAT)、脈沖和方向。
Ax 具有一整套模擬和數字 I/O 以及用于最常見數字協議(EnDat、Hiperface)的多端口編碼器接口,如 SinCos、TTL 或解析器。

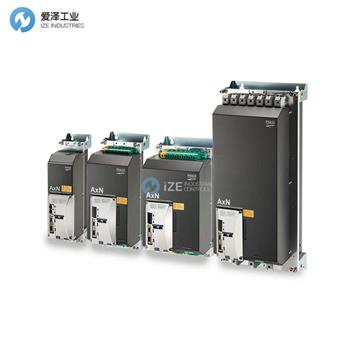

THE AXN SERIES IS A STAND-ALONE DEVICE WITH B6 RECTIFIER INPUT IN A RANGE FROM 9 TO 200A (CONTINUOUS DUTY).
Ax means a complete current range between 4 Arms and 300 Arms in 6 sizes (AxM II, AxN and AxW DC), together with several interfaces: analogue (+/-10V), fieldbus (CANOpen and EtherCAT), pulse and direction.
Ax is featuring a complete set of analogue and digital I/Os and a multiport encoder interface for the most common digital protocols (EnDat, Hiperface) as SinCos, TTL or resolver.
PHASE驅動器AXN系列選型
PHASE驅動器AXN系列其他常用型號:
PHASE AXN09.20.4
PHASE AXN16.30.4
PHASE AXN22.44.4
PHASE AXN35.70.4
PHASE AXN50.100.4
PHASE AXN70.140.4
PHASE AXN90.150.4
PHASE AXN110.200.4
PHASE AXN110.250.4
PHASE AXN150.300.4
PHASE AXN200.300.4
PHASE AXN09.20.4F200F0000
PHASE AxN35.70.4C000F0000
PHASE Drives NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年,定位于向制造工業提供高端制造技術和設備。代理經營世界優質的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣,液壓以及氣動解決方案的合作伙伴,我們利用我們的全球協作團隊,為客戶提供先進解決方案,市場知識以及相關增值服務來幫助優化客戶的工作效率,提高可靠性和安全性,致力于成為工業產品和解決方案的優質渠道。
如果有任何關于PHASE驅動器AxN35.70.4C000F0000的疑問,請隨時與我們溝通(021-31006702)。我們將盡全力解決您的問題。
If you have any question for PHASE products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website:jjxdch.cn.
PHASE驅動器AXN系列AxN35.70.4C000F0000技術參數及選型
