PAVONE變送器UWT6008/E技術參數
Technical Specifications | |
Measuring range: | -3.9 ÷ +3.9 mV/V |
Input sensitivity: | 0.02 μV/count |
Full scale non-Linearity: | <0.01% |
Gain drift: | < 0.001% FS/°C |
Display: | 128 x 64-pixel graphic LCD |
A/D Converter: | 24 bits |
Internal Resolution: | > 16.000.000 points |
Trasducer input voltage: | 5 Vdc (230 mA max.) |
Frequency signal acquisition: | 12,5 ÷ 300 Hz |
Visible resolution (in divisions): | 999999 |
Divisions value (adjustable): | x1, x2, x5, x10, x20, x50 |
Decimal figures range: | 0 ÷ 4 |
Temperature range: | -10 ÷ + 50°C (max. humidity: 85% without condensation) |
Storage temperature: | -20 ÷ +70°C |
Filter: | 5 ÷ 250 Hz |
Logic output: | 2 relays, Max. 48 Vac/Vdc, 2A each |
Logic input: | 2 opto-isolated at 12/24 Vdc PNP (external power supply) |
Serial port: | 1 USB device + 1 RS232C + 1 RS485 |
Analog output Non-Linearity: | < 0,02% |
Temperature drift analog output: | 0,001% FS / °C |
Power supply: | 12-24 Vdc ±15% - power consumption 4 W |
Microcontroller: | ARM Cortex M0+ at 32 bits, 256KB Flash reprogrammable on-board from USB |
Data storage: | 64 Kbytes expandable up to 1024 Kbytes |
Regulatory compliance: | EN61000-6-2, EN61000-6-3 for EMC; EN61010-1 for Electrical Safety, EN45501 for metrology |
Number of load cells: | 1 ÷ 8 |
Dimensions: | 100 x 75 x 110 mm (L x H x P) |
PAVONE變送器UWT6008/E產品介紹

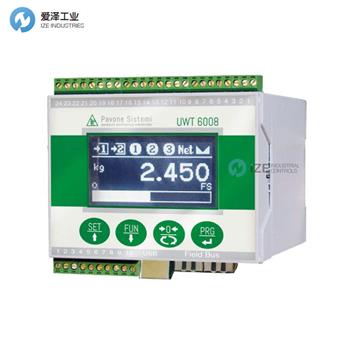

UWT 6008 Ethernet重量變送器由 Pavone Systems 設計。該重量變送器是一款獨特的產品，因為它適用于所有需要了解不同電池上的負載分布的工業應用。UWT 6008 Ethernet能夠監控所有稱重傳感器，并由于傳感器信號漂移過大、連接丟失、稱重傳感器故障和重量分布不平衡而生成警報。仿真控制使稱重系統即使在稱重傳感器損壞時也能正常工作，直到更換。
The UWT 6008 Ethernet weight transmitter has been designed by Pavone Systems. This weight trasnsmitter is a unique product since it is suitable to all industrial applications where it is necessary to know the load distribution on the different cells. The UWT 6008 Ethernet is able to monitor all load cells and generate alarms due to excessive cell signal drift, missing connections, failures in load cells and unbalanced weight distribution. The emulative control allows the weighing system to work even when a load cell is broken, until its replacement.
