CASHCO調節器BBJ-AS27-77C00000A技術參數
Code | BBJ-AS27-77C00000A |
B | |
GASKETS & SERVICE | B = Standard : Graphite / NBR/ - Non-Oxygen |
SIZE & SERVICE | J = Liquid DN (15),In 1/2 |
BODY & SPRG CHAMBER MATERIALS | A = Body/Sp. Ch SST/SST |
TRIM DESIGNATION NUMBERS | S2 = Stainless Steel Trim Desig. S2 |
7 | |
END CONNECTIONS | 7 = -30 Opt.- 300 LB RF Flgs.(Std) |
RANGE SPRINGS | 7 = 80-150 psig |
TRIM VARIATIONS | C = -14, Integral Seat Surface (Not available with B1 Trim or NACE) |
FEATURE OPTIONS | 0 = No Option |
SPRING CHAMBER OPTIONS | 0 = No Option |
BODY OPTIONS | 0 = No Option |
CERTIFICATE OPTIONS | 0 = No Option |
0A |

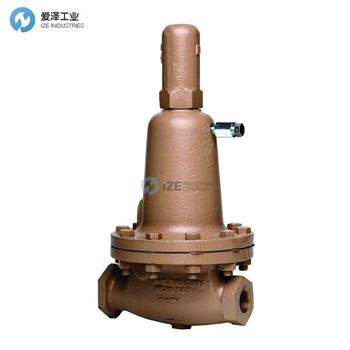

CASHCO調節器1000 HP Basic系列介紹
1000HP 型是一種高容量、高壓調節器，其某些結構允許入口壓力高達 2600 psig (179.3 Barg)，用于將下游壓力控制在 10 和 300 psig (0.69 和 20.7 Barg) 之間。尺寸從 1/2" 到 2"（DN15 到 DN50）。獨特的內部設計允許在多種應用中使用，包括普通減壓調節器無法比擬的空氣、蒸汽和工藝流體?？晒┯脩羰褂玫耐ㄓ玫淖越o式減壓調節器。
The Model 1000HP is a high capacity, high pressure regulator with some constructions allowing inlet pressures up to 2600 psig (179.3 Barg), used to control downstream pressure between 10 and 300 psig (0.69 and 20.7 Barg). Available in sizes from 1/2" thru 2" (DN15 thru DN50).The unique internals design allows use in a multitude of applications, including air, steam and process fluids that normal pressure reducing regulators can not match. The most versatile self contained, pressure reducing regulator available to users.

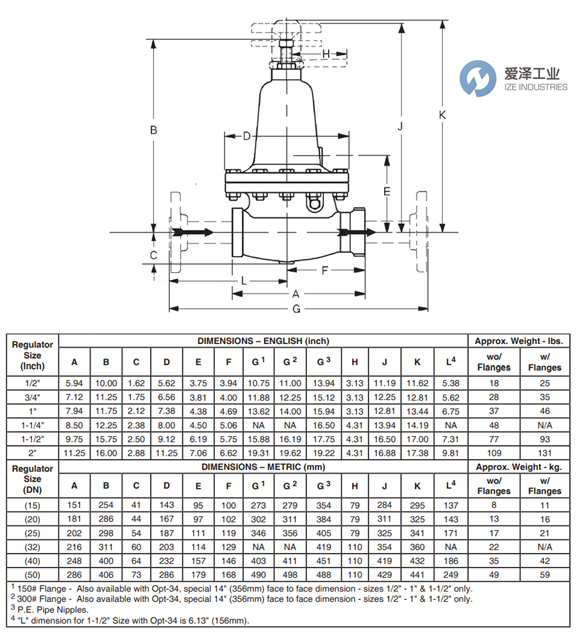

CASHCO調節器1000 HP Basic系列尺寸圖

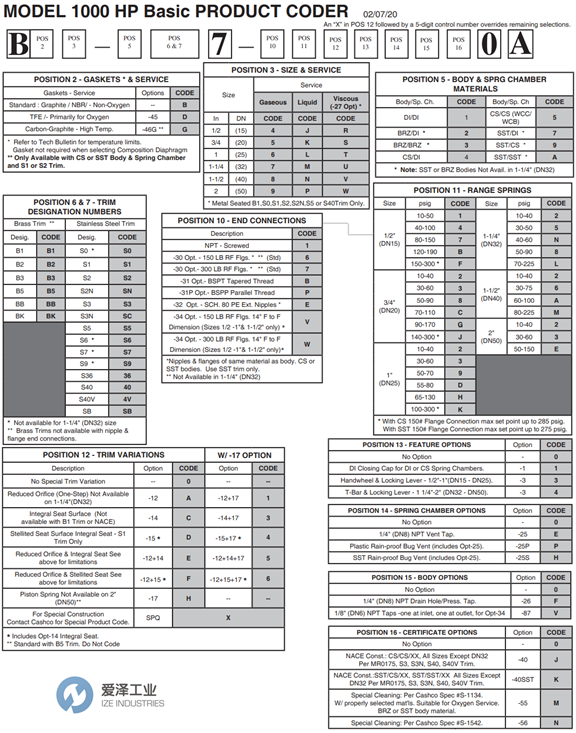

CASHCO調節器1000 HP Basic系列選型
CASHCO調節器1000 HP Basic系列常用型號：
CASHCO BBJ-AS07-77C00000A
CASHCO BBJ-AS17-77C00000A
CASHCO BBJ-AS27-77C00000A
CASHCO BBJ-AS37-77C00000A
CASHCO BBJ-AS57-77C00000A
CASHCO BBJ-AS67-77C00000A
CASHCO BBJ-AS77-77C00000A
CASHCO BBJ-AS97-77C00000A
CASHCO BBJ-AS367-77C00000A
CASHCO BBJ-AS407-77C00000A
CASHCO Regulators NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向制造工業提供高端制造技術和設備。代理經營世界優質的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于CASHCO調節器BBJ-AS27-77C00000A的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for CASHCO products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website:jjxdch.cn.
CASHCO調節器1000 HP Basic系列BBJ-AS27-77C00000A技術參數及選型
