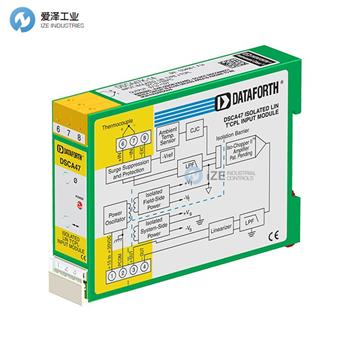

DATAFORTH模塊DSCA47K-14技術參數
Specifications | |
Thermocouple Type | K |
Output Range | 0 to +10 V |
Input Temperature Range | 0 to 1200 °C |
Mechanical Format | DIN rail |
Isolation Voltage | 1500 Vrms |
Isolation Type | Transformer 3-way |
Accuracy | ±0.08% (±0.96°C) |
Supply Voltage | 15 to 30 Vdc (+24V Nom) |
Input Voltage Withstand | 240 Vrms |
Gain/Offset Adjust | ±3% |
Module Bandwidth | 3 Hz |
NMR (60 Hz) Rejection | 95 dB at 60 Hz, 85dB at 50Hz |
External I-to-V Resistor | N/R |
Output Control | Always enabled |
Output Resistance | <1 Ohm |
Dimensions | 2.95 x 0.89 x 4.13 inches |
Interface | 8 Pos terminal block |
Customization | yes |
Weight | 136 grams (4.8 ounces) |
DATAFORTH模塊DSCA47系列其他常用型號：
DATAFORTH DSCA47J-01
DATAFORTH DSCA47J-02
DATAFORTH DSCA47J-03
DATAFORTH DSCA47K-04
DATAFORTH DSCA47K-05
DATAFORTH DSCA47K-13
DATAFORTH DSCA47K-14
DATAFORTH DSCA47T-06
DATAFORTH DSCA47T-07
DATAFORTH DSCA47E-08
DATAFORTH DSCA47R-09
DATAFORTH DSCA47S-10
DATAFORTH DSCA47B-11
DATAFORTH DSCA47N-15
DATAFORTH SCM5B40-03D
DATAFORTH Modules NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向制造工業提供高端制造技術和設備。代理經營世界優質的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于DATAFORTH模塊DSCA47K-14的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for DATAFORTH products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website:jjxdch.cn.
