FW MURPHY油位開關DVU2120技術規格
Model | DVU2120 |
Inlet | 2 NPT |
Outlet | 1 NPT |
Trim Size inches (mm) | 0.500 (12.7) |
Working Max. Press. | 2000 psi |
FW MURPHY油位開關DVU系列介紹

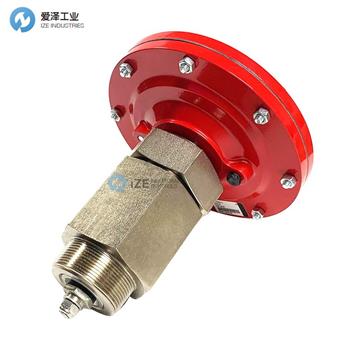

DVU Series Dump Valves
For Separators/Scrubbers to 2000 psi (13.8 MPa) [138 bar] Working Pressure
Hex Union Allows Plug and Seat Replacement Without Piping Removal
Operates on 30–70 psi (207–483 kPa) [2.07–4.83 bar] Control Pressure
Compatible With FW Murphy Level Controls
Soft Seat Valve
Manual Valve Operator
The DVU Series are pneumatically controlled dump valves. The valves open and close automatically by pneumatic control from a FW Murphy level controller and dump valve operator. Diaphragm actuated, the DVU series dump valves operate at 30–70 psi (207–483 kPa) [2.07–4.83 bar] and up to 2000 psi (13.8 MPa) [138 bar] vessel pressure (depending on the model).
A key benefit of this design is a hex union that provides the ability to replace the seat without removing the valve from piping.
Designed for gas compressor scrubbers, the DVU Series can be used to dump any liquids compatible with its materials of construction.
DVU 系列卸料閥
用于 2000 psi (13.8 MPa) [138 bar] 工作壓力的分離器/洗滌器
六角接頭允許在不拆卸管道的情況下更換插頭和閥座
在 30–70 psi (207–483 kPa) [2.07–4.83 bar] 控制壓力下運行
與 FW Murphy 電平控制兼容
軟座閥
手動閥門操作器
DVU 系列是氣動控制的傾倒閥。 閥門通過 FW Murphy 液位控制器和傾倒閥操作器的氣動控制自動打開和關閉。 隔膜驅動的 DVU 系列卸料閥在 30–70 psi (207–483 kPa) [2.07–4.83 bar] 和高達 2000 psi (13.8 MPa) [138 bar] 的容器壓力下運行（取決于型號）。
這種設計的一個主要優點是六角活接頭，它可以在不從管道上拆下閥門的情況下更換閥座。
DVU 系列專為氣體壓縮機洗滌器而設計，可用于傾倒與其結構材料兼容的任何液體。
FW MURPHY油位開關DVU系列其他常用型號：
FW MURPHY DVU2120
FW MURPHY DVU2115
FW MURPHY DVU2105
FW MURPHY DVU175
FW MURPHY DVU175SS
FW MURPHY DVU150
FW MURPHY DVU1 50SS
FW MURPHY DVU2120 Seal Kit :
FW MURPHY DVU2120 Diaphragm Kit
FW MURPHY DVU2115 Seal Kit :
FW MURPHY DVU2115 Diaphragm Kit
FW MURPHY DVU2105 Seal Kit :
FW MURPHY DVU2105 Diaphragm Kit
FW MURPHY DVU150/175 Seal Kit
FW MURPHY DVU150/1 75 Diaphragm Kit
FW MURPHY DVU1 50/175 End Seal Kit
FW MURPHY DVU150SS/175SS Seal Kit
FW MURPHY DVU150SS/175SS Diaphragm Kit
FW MURPHY Oil Level Switch NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業集產品開發、設計、制造、銷售、服務于一體，代理經營世界優質的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于FW MURPHY油位開關DVU2120的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for FW MURPHY products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website: jjxdch.cn.
FW MURPHY油位開關DVU2120規格參數
