S+S溫度傳感器TM65-MODBUS-T3介紹
IMMERSION/ SCREW-IN/ DUCT TEMPERATURE MEASURING TRANSDUCER THERMASGARD? TM 65 - MODBUS - T3
Patented quality product (immersion sensor patent no. DE 10 2012 017 500.0)
Calibratable THERMASGARD? TM 65 - Modbus - T3 temperature measuring transducer with sensor tube, Modbus connection, in an impact resistant plastic housing with quick-locking screws, optionally with/without display, stainless steel protective tube (50–400 mm).
The duct temperature transmitter serves to detect the temperature in liquid or gaseous media. Use our stainless steel thermowells for aggressive media. Applications are found in heating engineering, ventilation and air conditioning ducts, pipes, storage systems, compact district heating stations, warm and cold water systems, oil and lubrication cycle systems, mechanical and systems engineering and the entire industry sector.
Innovative Modbus sensor with galvanically separated RS485 interface, selectable bus termination resistance, DIP switches for setting the bus parametres and bus address in current-free state, LEDs for telegram status display, two separate push-in terminals and a large back-lit three-line display with customised programming in the 7-segment range and dot-matrix ranges. The measuring transducer uses internal diagnostics to detect sensor breakage or shorts as errors. The error messages can be retrieved via Modbus and are shown on the display. The sensor is factory-calibrated and can be fine-tuned to ambient conditions by an expert.
浸入式/旋入式/管道溫度測量傳感器 THERMASGARD? TM 65 - MODBUS - T3
獲得專利的優質產品（浸入式傳感器專利號 DE 10 2012 017 500.0）
可校準的 THERMASGARD? TM 65 - Modbus - T3 溫度測量傳感器，帶傳感器管，Modbus 連接，在帶快速鎖定螺釘?shù)哪蜎_擊塑料外殼中，可選帶/不帶顯示器，不銹鋼保護管 (50–400 mm)。
管道溫度變送器用于檢測液體或氣體介質中的溫度。將我們的不銹鋼熱套管用于腐蝕性介質。應用在供暖工程、通風和空調管道、管道、存儲系統、緊湊型區域供熱站、冷熱水系統、油和潤滑循環系統、機械和系統工程以及整個工業領域。
創新的 Modbus 傳感器，帶電隔離 RS485 接口、可選總線終端電阻、用于在無電流狀態下設置總線參數和總線地址的 DIP 開關、用于電報狀態顯示的 LED、兩個獨立的推入式端子和一個大型背光三在 7 段范圍和點陣范圍內具有自定義編程的線顯示。測量傳感器使用內部診斷來檢測傳感器破損或短路作為錯誤。錯誤消息可以通過 Modbus 檢索并顯示在顯示屏上。該傳感器經過工廠校準，可以由專家根據環境條件進行微調。

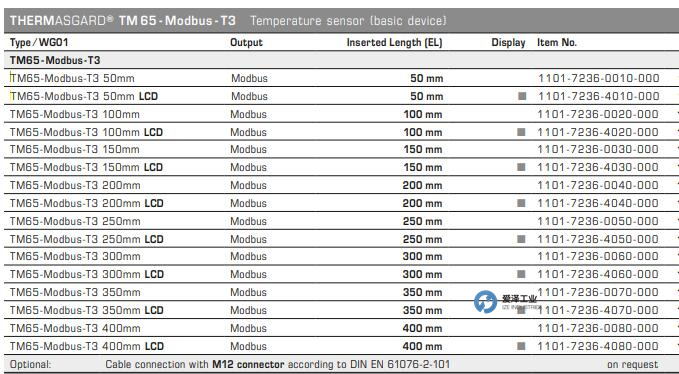

S+S溫度傳感器TM65-Modbus-T3 50mm選型
S+S溫度傳感器其他常用型號：
S+S TM65-Modbus-T3 50mm
S+S sensor NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向先進制造工業提供高端制造技術和設備。代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于S+S溫度傳感器TM65-Modbus-T3 50mm的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for S+S products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website: jjxdch.cn.
