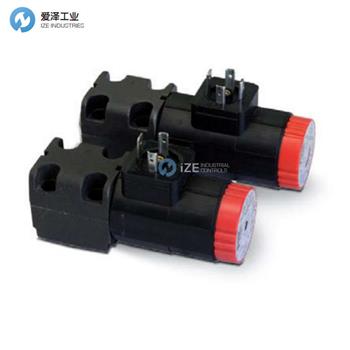

H+L閥NG4 ISO4401系列技術參數
Technical data | |
General | |
Type of valve | piston valve |
Operation | electric |
Mounting | 4xM5x40 DIN912 |
Connection of ports | mounting plate |
Mounting positions | mountable in any positions |
Ambient temperature | -5 to +50 °C |
Mass valve | 0,68 kg with single acting solenoid |
Hydraulic | |
Operation pressure P,A,B | max.315 bar |
Operation pressure T | max.150 bar |
Hydraulic oil temperature | -10 to +70 °C |
Viscosity range | 10 to 300 mm2/s |
Max. flow | 30 l /min |
Electric | |
Voltage (±10%) | 24 V DC 230V, 50Hz AC |
Switching time on* | 17 ms 25 ms |
Switching time off*** | 17 ms 25 ms |
Power consumption P20 | 20 W |
Start up peak P20 | 64 VA |
Duty factor | 100% 100% |
Protection system DIN 40450 | IP65 IP65 |
H+L閥NG 4 ISO 4401系列介紹
? 直控活塞閥
? 緊湊的設計
? 切換時間短
? 低內漏
? 用于直流或交流電的壓力密封油浸螺線管
? 易于維修：當閥門處于系統壓力下時，可以更換電磁閥而不會泄漏
? 螺線管可以旋轉3 x 90°，允許替代連接器位置
? 只有一個插頭，即使有4 / 3個方向控制閥
? 符合ISO4401的端口連接模式
? Directly controlled piston valve
? Compact design
? Short switching time
? Low internal leakage
? Pressure sealed oil-immersed solenoids for direct or alternating current
? Easy service: solenoid can be changed without leakage while the valve is under system pressure
? Solenoids can be rotated 3 x 90°, allowing alternative connector positions
? Only one plug, even with 4 / 3 directional control valves
? Port connection pattern according to ISO 4401
H+L閥NG 4 ISO 4401系列其他常用型號：
H+L WE05-4L100Z024/0HN
H+L WE02-4R100R24/0HN
H+L WE01-4R100ZR24/0H
H+L WE02-4R100R24/0HN
H+L WE01-4R100ZR24/0HN
H+L WE02-4R1290R24/0H
H+L WE09-4L100Z024/0H
H+L WE04-4R100Z024/0H
H+L Valve NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向制造工業提供高端制造技術和設備。代理經營世界優質的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于H+L閥WE02-4R100R24/0HN的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for H+L products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website:jjxdch.cn.
H+L閥NG 4 ISO 4401系列WE02-4R100R24/0HN技術參數及選型
