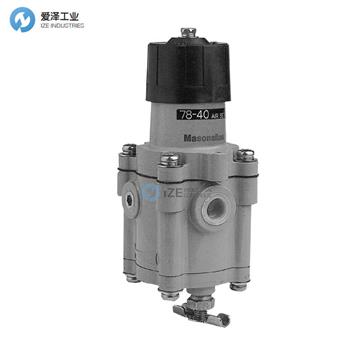

MASONEILAN調節器78-40技術參數
Inlet Pressure Rating | 210 psi (1.5 Mpa, 15 bar) maximum |
Pressure Set Range | 5-100 psi (35-700 kPa, 0.35-7 bar) |
Connection | 1/4 NPT or Rc |
Rated Cv | 0.25 |
Filter Element | Sintered Porous Polyethylene (5μ) |
Ambient Temperature Range | -40°C to +83°C (-40°F to +182°F) |
Low Temperature Range | -50°C to +60°C (-58°F to 140°F) |
High Temperature Range | 0°C to 100°C (32°F to 212°F) |
Air Consumption | 0.004 scfm (100 sccm) |
Weight | 1 lb. (0.45 kg) |
MASONEILAN調節器78系列介紹
78 系列壓力調節器是緊湊、輕便、高性能的減壓閥。 它們主要用于為過程控制設備提供穩定的空氣源，例如氣動傳感器和控制閥定位器的電流。
特點和優勢
? 出色的壓力調節。
? 鎖定螺釘確保輸出壓力保持在所需值。
? 體積小、重量輕，使得調節器可以在大多數安裝中采用螺紋接頭安裝，無需安裝支架。 如果需要，可提供安裝支架。
? 兩個壓力表端口允許在任一側安裝壓力表，以便安裝時靈活。
? 主閥上的軟座塞提供正向關閉。
? 燒結聚乙烯過濾器提供 5 微米的過濾等級。
? 不銹鋼排水管。
? 耐腐蝕飾面和不銹鋼裝配硬件允許在腐蝕性環境中使用。
The 78 Series pressure regulators are compact, lightweight, high-performance pressure reducing valves. They are used primarily for supplying a stable source of air to process control equipment such as current to pneumatic transducers and control valve positioners.
Features and Benefits
? Excellent pressure regulation.
? Lock screw ensures output pressure remains at desired value.
? Small size and light weight allows the regulator to be nipple mounted in most installations, eliminating the need for a mounting bracket. A mounting bracket is available if required.
? Two pressure gauge ports allow installation of gauge on either side for flexibility when mounting.
? Soft seat plug on main valve provides positive shutoff.
? Sintered polyethylene filters provide 5 micron filtration rating.
? Stainless steel drain.
? Corrosion resistant finish and stainless assembly hardware permit use in corrosive environments.

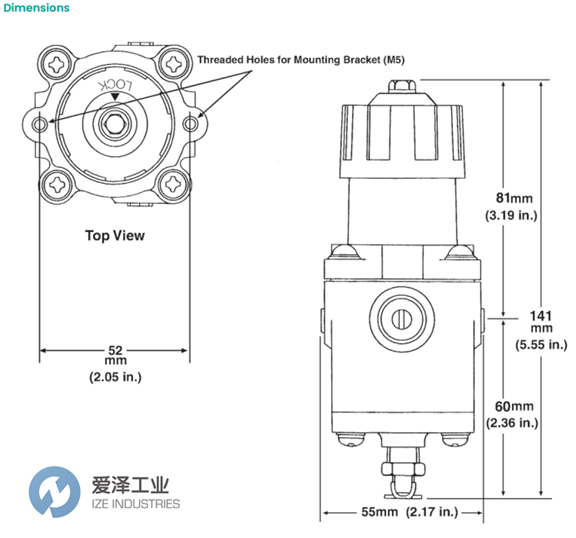

MASONEILAN調節器78系列技術尺寸
MASONEILAN調節器78系列其他常用型號：
MASONEILAN 78-40
MASONEILAN 78-4
MASONEILAN Regulators NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向制造工業提供高端制造技術和設備。代理經營世界優質的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于MASONEILAN調節器78-40的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for MASONEILAN products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website:jjxdch.cn.
MASONEILAN調節器78-40技術參數及尺寸
