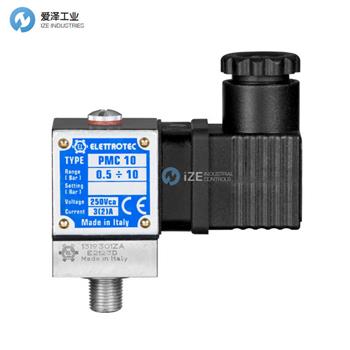

ELETTROTEC壓力開關PMC/PMC...D系列技術參數
Switch rating | 3(2)A / 250Vac |
Electrical connection | DIN 43650 PG09 |
Adjusting range | 0.15..2 bar; 0.2…5 bar; 0.5…10 bar, 10…25 bar; 25…80 bar; 30…150 bar; 150…300 bar |
Max static pressure | 30 bar, 60 bar, 100 bar, 150 bar, 600 bar (according to the possible pressure range) |
Hysteresis | 30% set-point adjustment |
Operating temperature | -5C… +6 |
Contact (without pressure) | SPDT |
Body material | Anodized aluminium Flange: Zinc-plated steel |
Diaphragm/Piston seal | NBR (standard) – HNBR – FKM – Silicone |
Threads | Taper: G1/8 G1/4 |
Protection | IP65 |
Size | Body 30×30 + connector 37×30 Height 58mm; with connector max. 78mm |
Certifications and Approvals | CE, RINA, Lloyds Register, ATEX, UR |
Options | Set-point adjustment rising Set-point adjustment falling Gold contacts Degreasing for oxygen applications Execution with 2 SPDT contacts |

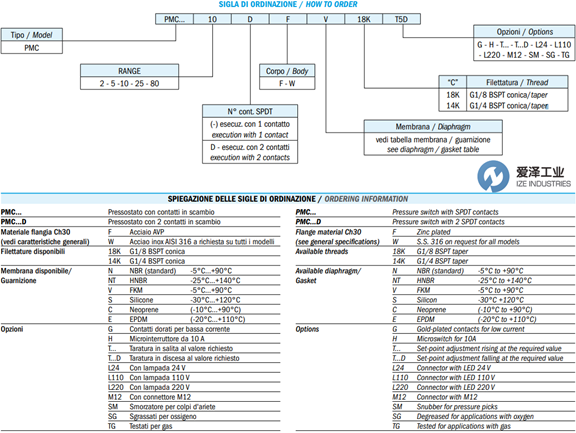

ELETTROTEC壓力開關PMC/PMC...D系列選型
ELETTROTEC壓力開關PMC/PMC...D系列其他常用型號：
ELETTROTEC PMC10FN18K
ELETTROTEC PMC10DFV18KT5D
ELETTROTEC Pressure Switches NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向制造工業提供高端制造技術和設備。代理經營世界優質的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于ELETTROTEC壓力開關PMC10FN18K的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for ELETTROTEC products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website:jjxdch.cn.
ELETTROTEC壓力開關PMC/PMC...D系列PMC10FN18K技術參數及選型
