MESSKO變送器Combi Well系列技術參數
Basic materials | |
Housing | Aluminum, cast |
Well/cable glands | Brass, bare |
EMSKV 20X1,5 EMV-S cable gland | Brass, nickel plated |
Pt100 output | |
Pt100 output | Measuring resistor, Class B in accordance with IEC 751 (100 Ω at 0°C) |
Current output (combi TT) | |
Supply voltage | DC: 12…30 V unregulated, |
Output signal | 4…20 mA |
Max. load resistance | 750 Ω e.g. UB=24 V DC |
Error deviation | ±2% from end value |
Operating conditions and ambient conditions | |
Ambient temperature | -40…+80°C |
Degree of protection | IP55 in accordance with EN 60529. |
Setup | Indoors and outdoors |
Mounting position | Any |
MESSKO變送器Combi Well系列介紹

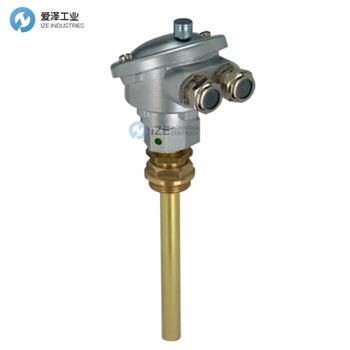

combi well與thermo well一樣，是油溫計的裝配套管。它可以安裝在符合 DIN 42554 的溫度計口袋中。但是，它還具有符合 DIN 43760 的集成 Pt100 測量電阻器，因此可以遠程傳輸測量的溫度值。combi well由浸入管和連接頭組成。評估設備（例如數字顯示器）的端子連接以及指針式溫度計的溫度傳感器的浸入管的套管位于連接頭中。
The combi well, like the thermo well, is an assembly sleeve for the oil thermometer. It can be installed in the thermometer pocket in accordance with DIN 42554. However, it also has an integrated Pt100 measuring resistor in accordance with DIN 43760 so that the measured temperature value can be transmitted remotely. The combi well consists of the immersion pipe and connection head. The terminal connections for the evaluation devices (e.g. digital display) as well as a bushing for the immersion pipe for the temperature sensor of the pointer thermometer are located in the connection head.
MESSKO變送器其他常用型號：
MESSKO 696-ZA1PZ
MESSKO 696-ZA1AA
