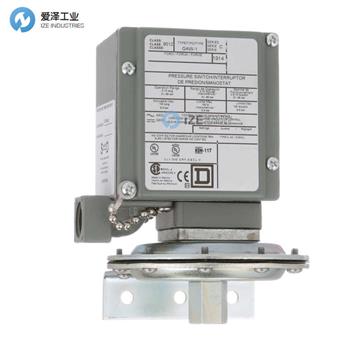

SQUARE-D壓力開關9012GAW-1技術參數
Main | |
Range of Product | 9012G |
pressure sensor type | Electromechanical pressure switch |
pressure sensor name | 9012G |
Pressure Rating | 10 psi (68.95 kPa) |
maximum pressure | 100 psi |
contacts type and composition | NC-NO, SPDT-DB, Form Z, snap action, silver nickel contacts |
controlled fluid | Hydraulic oil -40…250 °F (-40…121 °C)) |
fluid connection type | 0.25 inch 18 NPTF UL 508 |
pressure switch type of operation | Regulation between 2 thresholds |
scale type | Adjustable differential |
local display | Without |
Complementary | |
range on decreasing pressure | 0.2…10 psi (1.38…68.95 kPa) |
approx adjustable differential at mid range | 0.6…2 psi (4.14…13.79 kPa) +/- 2.5 % full scale |
cable entry | 0.5 inch NPT conduit entrance |
terminal block type | 4 screw terminals |
electrical connection | Screw-clamp terminals, AWG 22...AWG 12 |
electrical circuit type | Control circuit |
local signalling | Without |
Line Rated Current | 3 A 240 V AC A600 NEMA rating designation |
setting | Internal |
Enclosure Material | Die cast aluminium alloy 380 |
pressure actuator | Diaphragm nitrile (Buna-N) |
Height | 6.24 in (158.50 mm) |
Depth | 4.56 in (115.82 mm) |
Width | 5.05 in (128.27 mm) |
operating position | Any position |
materials in contact with fluid | Nitrile (Buna-N) |
short-circuit protection | 10 A cartridge overload and short-circuit protection gL |
maximum operating rate | 120 cyc/mn |
mechanical durability | 5000000 cycles |
repeat accuracy | 0.04 |
Net Weight | 3 lb(US) (1.36 kg) |
Environment | |
vibration resistance | 2 gn 40…150 Hz)IEC 68-2-6 |
shock resistance | 50 gn IEC 58-2-27 |
standards | CE |
Product Certifications | CE |
NEMA degree of protection | NEMA 4/4X/13 UL 50 |
Ambient Air Temperature for Operation | -10…185 °F (-23…85 °C) |
SQUARE-D壓力開關9012GAW-1產品介紹
該產品是 Nema 壓力開關系列的一部分，該系列提供機電壓力開關。這種機電壓力開關具有常閉 - 常開、SPDT-DB（單刀雙擲、雙斷）、Z 形、速動觸點和 0.2psi 至 10psi 的減壓范圍。壓力開關在 0.6psi 至 2psi 的中間范圍內具有近似可調壓差，壓力<= 100psi。它配有用于電氣連接的螺釘夾端子和用于流體連接的 0.25 英寸 18 NPTF。這個開關有一個可以從任何位置操作的隔膜致動器，用于內部設置和調節 2 個閾值的可調微分刻度。外殼由壓鑄鋁合金 380 制成。它的尺寸為 5.05 英寸 (W) x 4.56 英寸 (D) x 6.24 英寸 (H)，重 3 磅。
This product is part of the Nema Pressure Switches range, an offer of electromechanical pressure switches. This electromechanical pressure switch has normally closed - normally opened, SPDT-DB (single pole double throw, double break), form Z, snap action contacts and a range on decreasing pressure of 0.2psi to 10psi. The pressure switch with an approximate adjustable differential at mid range of 0.6psi to 2psi and a maximum pressure of 100psi. It is furnished with screw clamp terminals for electrical connection and 0.25inch 18 NPTF for fluid connection. This switch has a diaphragm actuator which can be operated from any position, adjustable differential scale for internal settings and regulation of 2 thresholds. The enclosure is made of die cast aluminium alloy 380. It is available in size of 5.05inch (W) x 4.56inch (D) x 6.24inch (H) and weighs 3lb.
