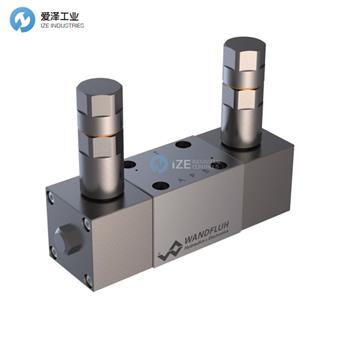

WANDFLUH滑閥AQ4Z60系列技術參數
GENERAL SPECIFICATIONS | |
Designation | 4/2-spool valve |
Construction | Direct operated |
Mounting | Flange construction |
Nominal size | NG6 according to ISO 4401-03 |
Actuation | Integral pressure reversal |
Ambient temperature | -25…+70 °C |
Weight | 2,5 kg |
MTTFd | 150 years |
HYDRAULIC SPECIFICATIONS | |
Working pressure | pmax = 315 bar |
Tank pressure | pT max = 160 bar |
System pressure | 25…315 bar |
Reversal pressure | Maximum 90 % of the system pressure |
Maximum volume flow | Qmax = 30 l/min, see characteristics |
Minimum volume flow | Qmin = 2 l/min |
Fluid | Mineral oil, other fluid on request |
Viscosity range | 12 mm2/s…320 mm2/s |
Temperature range fluid | -25…+70 °C (NBR) |
Contamination efficiency | Class 20 / 18 / 14 |
Filtration | Required filtration grade ? 10…16 ≥ 75, |
WANDFLUH滑閥AQ4Z60系列介紹
帶有 4 個接頭的滑閥，位于 5 腔系統中，具有集成壓力反轉功能。當達到調節后的反轉壓力時，切換到相反的切換位置。反轉發生在例如行程的末端位置或負載壓力超過調節后的反轉壓力時。蓋子帶有壓力釋放裝置，用于調節反轉壓力。閥芯配合精確，泄漏少，使用壽命長。閥芯由硬化鋼制成，閥體由高品質液壓鑄鋼制成。
Spool valve with 4 connections in a 5 chamber system with integral pressure reversal. Switch into the oposite switching position when the adjusted reversal pressure is reached. The reversal takes place e.g. in the end position of the stroke or when the load pressure is exceeding the adjusted reversal pressure. Cover with pressure reliefs for adjusting the reversal pressure. Precise spool fit, low leakage, long service life time. Spool made from hardened steel, body from high quality hydraulic cast steel.
WANDFLUH滑閥AQ4Z60系列其他常用型號：
WANDFLUH AQ4Z60W
WANDFLUH AQ4Z60W-D1
WANDFLUH AQ4Z60-D1S1698/2172
WANDFLUH AQ4Z60W-S1698/2172
WANDFLUH AQ4Z60-S2172
WANDFLUH AQ4Z60W-S2172
WANDFLUH AQ4Z60-S1698
WANDFLUH AQ4Z60-D1S1698
WANDFLUH AQ4Z60-S1698/2172
