GENERANT安全閥STAINLESS CRV系列技術參數
Technical Data | |
Nominal Set Pressure Range: | 10 – 750 PSIG (0.69 to 51.7 Bar) |
Factory Set Tolerance: | +/- 5% of Specified Pressure |
Reseat: | 90% of set pressure OR |
Unaffected by up to 10% Back Pressure | |
Temperature Rating: | 320o to 392o F (-196o C to 200o C) |
Lubricant: | Krytox? |
GENERANT安全閥STAINLESS CRV系列介紹
Description

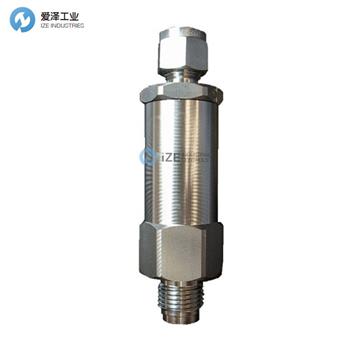

The Generant Series Stainless Steel CRV, Cryogenic Relief Valve is a spring reference over pressure protection device. The Stainless CRV is supplied cleaned and packaged for oxygen service making it an ideal choice for most cryogenic relief valve applications. The valve can be ordered with set pressures ranging from 10 to 750 PSIG (0.69 to 51.7 Bar) and come factory preset and permanently locked. Relief pressure cannot be altered or adjusted in the field. Seat and poppet geometry combined with optimized spring ranges provide high flow rates with minimum pressure accumulation. Compact design and availability of a variety of inlet and outlet configurations reduces size and piping requirements. Relief pressure can be discharged to atmosphere or to a downstream connection. The CRV can be specified with PCTFE or PTFE for set pressures above 50 PSIG (3.45Bar), Fluorosilicone for set pressures below 50 PSIG, and FKM (Viton?) throughout the available set pressure range.
Features
? Available in NPT, Metal to Metal Face Seal and Bi-Lok Dual Ferrule Tube Connections
? High Flow Capacity and Excellent Reseal Performance
? Discharge to Atmosphere or a Wide Varity of Inline Piping Configurations
? Supplied Factory Preset Set and Permanently Locked for Tamper Proof Service
? 100% Factory Tested for Leakage, Crack and Reseal Performance
? Optional Deflector Cap available for diverting exhausted gas
? Cleaned and Packaged for Oxygen Service
描述
Generant 系列不銹鋼 CRV 低溫安全閥是一種彈簧參考過壓保護裝置。不銹鋼 CRV 提供清潔和包裝用于氧氣服務，使其成為大多數低溫安全閥應用的理想選擇?？捎嗁徳O(shè)定壓力范圍為 10 至 750 PSIG（0.69 至 51.7 巴）的閥門，出廠預設并永久鎖定。不能在現場改變或調整釋放壓力。閥座和提升閥幾何形狀與優化的彈簧范圍相結合，可提供高流量和最小的壓力積累。緊湊的設計和各種入口和出口配置的可用性降低了尺寸和管道要求。釋放壓力可以排放到大氣中或排放到下游連接。 CRV 可以指定為設定壓力高于 50 PSIG (3.45Bar) 的 PCTFE 或 PTFE，指定壓力低于 50 PSIG 的氟硅橡膠，以及整個可用設定壓力范圍內的 FKM (Viton?)。
特征
? 提供 NPT、金屬對金屬面密封和 Bi-Lok 雙卡套管連接
? 高流量和出色的再密封性能
? 排放到大氣或各種內嵌管道配置
? 提供工廠預設并永久鎖定以提供防篡改服務
? 100% 的泄漏、開裂和重新密封性能經過工廠測試
? 可選的導流帽可用于轉移廢氣
? 針對氧氣服務進行清潔和包裝
GENERANT安全閥STAINLESS CRV系列其他常用型號：
GENERANT CRV8-8-K-203
GENERANT CRV8-8-K-348
GENERANT CRV8-8-K-131
GENERANT CRV8-8-K-740
