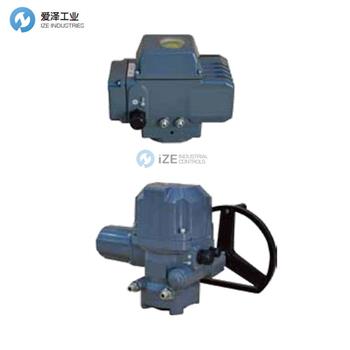

SCHNEIDER蝶閥執行器MFZ系列技術參數
The main technical parameters | |
torque | 50-2000Nm |
input power | 220VAC 50Hz |
limit switch | SPDT x2 |
Fully open and fully closed position feedback | Dry Node (220V-10A-1/2HP) |
heater | Standard (10W PTC) |
Torque switch | optional |
Overheat protection temperature | 135oC |
operating temperature | -30 ~ 60oC (maximum ambient temperature for continuous operation is 40oC) |
operation hours | ~30 seconds (DN50-DN400) |
Shell protection class | IP67-IP68 |
material | ASTM B85 Pressure Die Cast Aluminum, Corrosion Resistant Coating |
control signal | 0-10V or 4-20mA |
Feedback signal | 0-10V or 4-20mA |
SCHNEIDER蝶閥執行器MFZ系列介紹
MFZ-…系列蝶閥電動執行器主要用于搭配 VFZ210W 系列蝶閥使用?？梢蕴峁╅_(kāi)關型及調節型等不同的應用。
主要特點
- 外型小，重量輕，輸出扭矩大
- 無電源情況下可以手動旋轉閥門
- 獨立接線端子：電源接線端子和控制信號接線端子分別位于獨立區域，易于接線，且不會干涉其它零部件
- 雙接線入口：具有兩個螺紋連接口，應用連接電源線和控制線，避免相互干擾
- 電子行程限位和機械行程限位：兩個單刀雙擲限位開關分別控制全開和全關的行程限位。當電子限位失效時，機械行程限位可以有效精確限制執行器的行程
- 自主式 PTC 恒溫控制：執行器配備自主式 PTC 恒溫控制元件，可以確保執行器內部在任何情況下溫度穩定，無結露現象
MFZ-… series butterfly valve electric actuator is mainly used with VFZ210W series butterfly valve. Different applications such as switching type and regulating type can be provided.
main feature
- Small size, light weight and large output torque
- Manual rotation of the valve without power
- Independent terminals: power terminals and control signal terminals are located in separate areas, which are easy to wire and will not interfere with other components
- Dual Wiring Entry: With two threaded connections, it should be used to connect power and control lines to avoid mutual interference
- Electronic travel limit and mechanical travel limit: Two SPDT limit switches control the travel limit of fully open and fully closed respectively. When the electronic limit fails, the mechanical travel limit can effectively and accurately limit the travel of the actuator
- Autonomous PTC thermostatic control: The actuator is equipped with an autonomous PTC thermostatic control element, which can ensure that the temperature inside the actuator is stable under any conditions without condensation.
SCHNEIDER蝶閥執行器MFZ系列其他常用型號：
SCHNEIDER MFZ-80T
SCHNEIDER MFZ-100T
SCHNEIDER MFZ-125T
SCHNEIDER MFZ-150T
SCHNEIDER MFZ-200T
SCHNEIDER MFZ-250T
SCHNEIDER MFZ-300T
SCHNEIDER MFZ-350T
SCHNEIDER MFZ-450T
SCHNEIDER MFZ-450T
SCHNEIDER MFZ-500T
SCHNEIDER MFZ-80M
SCHNEIDER MFZ-100M
SCHNEIDER MFZ-125M
SCHNEIDER MFZ-150M
SCHNEIDER MFZ-200M
SCHNEIDER MFZ-250M
SCHNEIDER MFZ-300M
SCHNEIDER MFZ-350M
SCHNEIDER MFZ-400M
SCHNEIDER MFZ-450M
SCHNEIDER MFZ-500M
SCHNEIDER Actuator NEW + ORIGINAL+ ONE YEAR WARRANTY
