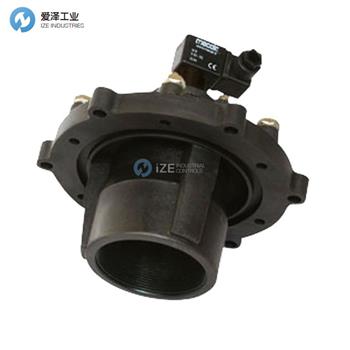

MECAIR電磁脈沖閥VNP408 24VDC產品介紹
VNP – with integral pilot |
4 = 400 Series |
08 = 1” |
MECAIR電磁脈沖閥VNP408 24VDC產品介紹
The 400 Series valves are suitable for low-pressure systems (0.5-1.5 bar), and high-pressure systems (0.5-7.5 bar). The Series 400 is a range of Diaphragm valves suitable for dust collector applications, in particular for reverse pulse-jet filter cleaning of filter bags, cartridges, envelope filters, ceramic filters and sintered metal fibre filters.
Construction Features:
Cover: Diecast Aluminium (anodised)
Body: Diecast Aluminium (anodised)
Pilot: Stainless Steel
Diaphragm: NBR
Bolts and Screws: Stainless Steel
Diaphragm Backing Disk: Stainless Steel
Diaphragm Spring: Stainless Steel
Electrical Characteristics:
Coil Insulation: Class H
DIN Socket Connector: Pg9 connection (cable entry)
DIN Socket Standard: EN175301 - 803 (previously DIN 43650A) / A/ISO 4400
DIN Socket Optional: 94/9/CE ATEX II 3GD T6
Isolation Class DIN Socket: VDE 0110 - 1/89
DIN Socket Protection: IP65 EN60529
Ambient Temperature: -30C/+40C
400系列閥門適用于低壓系統 (0.5-1.5 bar) 和高壓系統 (0.5-7.5 bar)。400系列是一系列適用于除塵器應用的隔膜閥，特別適用于過濾袋、濾芯、包膜過濾器、陶瓷過濾器和燒結金屬纖維過濾器的反向脈沖噴射過濾器清潔。
施工特點：
蓋子：壓鑄鋁（陽極氧化）
主體：壓鑄鋁（陽極氧化）
飛行員：不銹鋼
隔膜：丁腈橡膠
螺栓和螺釘：不銹鋼
隔膜支撐盤：不銹鋼
膜片彈簧：不銹鋼
電氣特性：
線圈絕緣：H級
DIN插座連接器：Pg9連接（電纜入口）
DIN 插座標準：EN175301 - 803（以前的 DIN 43650A）/A/ISO 4400
DIN 插座可選：94/9/CE ATEX II 3GD T6
隔離等級 DIN 插座：VDE 0110 - 1/89
DIN 插座保護：IP65 EN60529
環境溫度：-30C/+40C
MECAIR電磁脈沖閥其他常用型號：
MECAIR VNP408 24VDC
MECAIR VNP408-24/DCX
MECAIR VNP412-24/DC
MECAIR VNP414-24/DC
MECAIR VNP416-24/DC
MECAIR VNP408-110/50
MECAIR VNP408-220/50
MECAIR VNP408-220/50-M
MECAIR VNP408-220/50XM
MECAIR VNP408-24/50
MECAIR VNP408-24/DC
MECAIR VNP408-24/DCX-M
MECAIR VNP412-220/50
