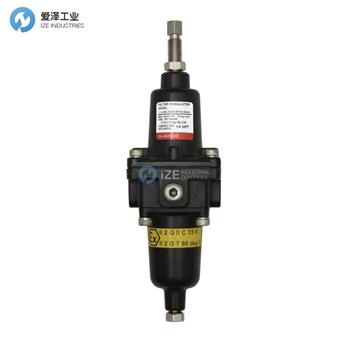

SHAVO空氣調節器11-4SN系列技術參數
Parameters | Specifications | ||
Pipe Threads | Rc 1/4, 3/8, 1/2 Taper(F) | - Standard | |
BSP / NPT | - Optional | ||
Body Material | Al. Alloy die-cast | ||
Filter Element Size | 5, 25, 40 micron. | ||
Filter Element Material | Plastic (Polycarbonate) | - Standard | |
Sintered Bronze | - Optional | ||
Filter Bowl Material | Al. Alloy Metal | - Standard | |
Maximum Inlet Pressure | with Metal Bowl Manual Drain | : 250 psig (17.5 bar) | |
with Metal Bowl Automatic Drain | : 150 psig (10.5 bar) | ||
Maximum Operating | 80° C | ||
Standard nominal flow rate at 10bar (150 psi). Inlet Pressure 6 bar(87 psi) set press. and a drop of 1bar(14.5 psi) from set | 55 scfm (26 dm3/sec) CV (1.04) | ||
Drain | Manual | - Standard | |
Regulator Type | Relieving | - Standard | |
Non - Relieving | - Optional | ||
Pressure Adjustment | Hand wheel | - Standard | |
Regulated secondary outlet | Spring Range psi (bar) | Gauge Range psi (bar) | |
1 | 1-10 psi (0.07 to 0.70) | 0-15 psi (0-1) | |
2 | 3-30 psi (0.21 to 2.10) | 0-30 psi (0-2.5) | |
3 | 5-50 psi (0.35 to 3.50) | 0-60 psi (0-4.0) | |
4 | 7.5-75 psi (0.50 to 5.00) | 0-100 psi (0-7.0) | |
5 | 10-100 psi (0.70 to 7.00) | 0-150 psi (0-10.0) | |
Gauge size | 50 mm (Dial Size) | ||
Gauge Port size | Rc 1/4 | ||
Gauge connection | Back | ||
Mounting Bracket | Optional | ||
Panel mounting | Possible - Optional | ||
Pressure Gauge (scale) | Kg/cm2 (PSI) | - Standard (For Domestic Market) | |
Bar (PSI) | - Standard (Export) | ||
SHAVO空氣調節器11-4SN系列介紹
11-4SN (G 1/4 , G 3/8 , G 1/2)
FEATURES
Extremely precise control
Unique valve design and a large ratio of diaphragm to valve area for a highly sensitive performance
Specially designed to meet instrumentation requirements
Metal bowl on combination unit resists corrosive and chemical atmosphere
Available as Pressure Regulator only
11-4SN (G 1/4 , G 3/8 , G 1/2)
產品特點
精準的控制
獨特的閥門設計和較大的隔膜與閥門面積之比，實現了高度靈敏的性能
專門設計以滿足儀器儀表要求
組合裝置上的金屬可抵抗腐蝕和化學環境
僅可用作壓力調節器
SHAVO空氣調節器11-4SN系列其他常用型號：
SHAVO 11-4SN-201M-M1KN-EB-X-XXX -XXX-X-XXX -XXX
SHAVO 11-4SN-200M-M2KA-EN-X-XXX-XXX
SHAVO Regulator NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向制造工業提供高端制造技術和設備。代理經營世界優質的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于SHAVO空氣調節器11-4SN-201M-M1KN-EB-X-XXX -XXX的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for SHAVO products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website:jjxdch.cn.
SHAVO空氣調節器11-4SN系列11-4SN-201M-M1KN-EB-X-XXX -XXX技術參數
