TESCOM調節器26-2000系列技術參數
OPERATING PARAMETERS | |
Maximum Inlet Pressure | 10,000 psig / 690 bar |
Outlet Pressure Ranges | 10-1500 psig 0.7-103 bar |
Design Proof Pressure | 150% of rated pressure |
Leakage | Bubble-tight |
Operating Temperature | -15°F to 165°F / -26°C to 73°C |
Flow Capacity | Cv = 0.02, 0.06, 0.12, or 0.30 |
MEDIA CONTACT MATERIALS | |
Body | 316 Stainless Steel or Brass |
Seat, Vent, and Main Valve | Polyimide (Vespel?) |
O-Ring | Nitrile, Buna-N (70 durometer) |
Back-up Ring | PTFE |
Remaining Parts | 316 Stainless Steel and 17-4 PH Stainless Steel |
OTHER | |
Cleaning | CGA 4.1 and ASTM G93 |
Weight (approximate) | 5.5 lbs / 2.5 kg |

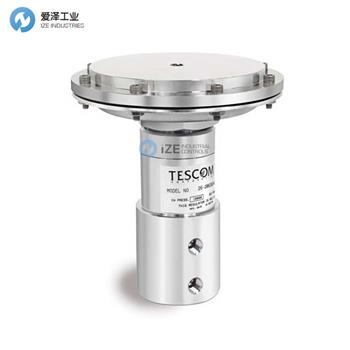

TESCOM調節器26-2000系列介紹
26-2000系列高壓、低流量活塞感應調節器提供圓頂、彈簧和空氣負載版本。該調節器配備了隔離捕獲的排氣標準，入口壓力額定值為 6000-15,000 psig / 413-1034 bar。
特征
標準隔離捕獲的排氣口
三種標準加載方法 - 彈簧、圓頂和氣動
提供柔軟和金屬對金屬座
標準40微米內部過濾器（軟座型號）延長使用壽命
可提供Cv為0.30的高流量版本
26-2000 Series high pressure, low flow piston sensed regulator is available in dome, spring and air load versions. This regulator comes with segregated captured venting standard with inlet pressure ratings of 6000-15,000 psig / 413-1034 bar.
Features
Segregated captured vent is standard
Three standard loading methods - spring, dome, and air actuated
Available with soft and metal-to-metal seating
Standard 40 micron internal filter (soft seated models) increases service life
High flow version is available with Cv of 0.30

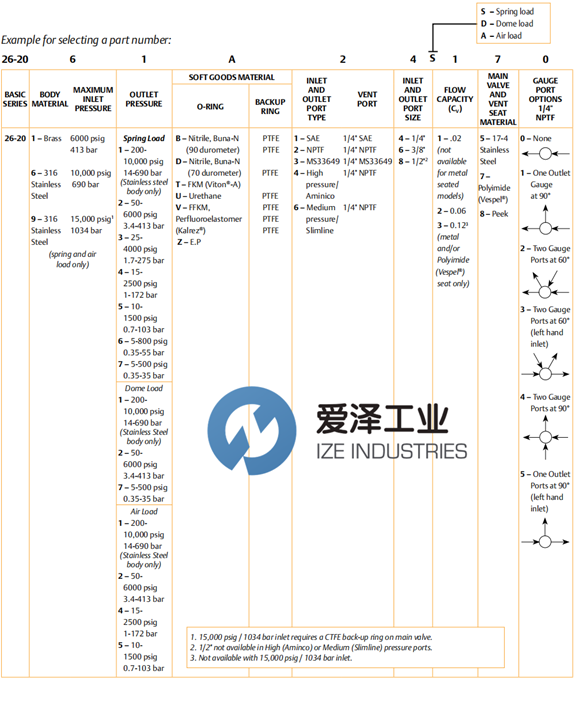

TESCOM調節器26-2000系列選型
TESCOM調節器26-2000系列其他常用型號：
TESCOM 26-2061D24S270
TESCOM 26-2062D24S270
TESCOM 26-2063D24S270
TESCOM 26-2064D24S270
TESCOM 26-2065D24S270
TESCOM 26-2066D24S270
TESCOM 26-2067D24S270
TESCOM 26-2061D24D270
TESCOM 26-2062D24D270
TESCOM 26-2067D24D270
TESCOM 26-2061D24A270
TESCOM 26-2062D24A270
TESCOM 26-2064D24A270
TESCOM 26-2014D24A270
