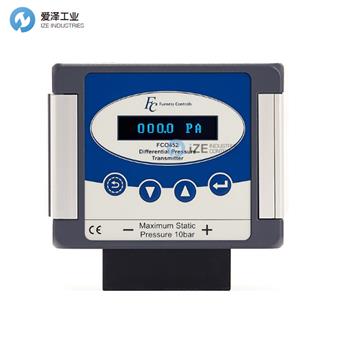

FURNESS CONTROL差壓變送器FCO452技術參數
Accuracy < 0.25% of reading |
IP66 enclosure |
High-visibility OLED Display |
Integral key pad for configuration |
Root or linear output for pressure or flow measurement |
FURNESS CONTROL差壓變送器FCO452產品介紹
FCO452是400系列低壓差變送器的工業版本。型號開始時的測量范圍僅為 ±50Pa（讀數的精度為 0.25%），差壓范圍可達-1至10 bar。還提供絕對壓力版本 (1500 mbar)。
堅固的IP66鋁制外殼提供在潮濕或骯臟環境中所需的保護。各種氣動連接可用于不同的管道尺寸，并帶有用于安裝隔離閥的工藝歧管選項。工藝歧管版本包含所有用于腐蝕性氣體的316不銹鋼接液部件。
FCO452具有內置溫度校正、可配置單位和可調節輸出阻尼。微控制器可以應用根變換以允許輸出從測量的壓差中直接給出速度讀數。
The FCO452 is the industrial version of the 400 series low differential pressure transmitters. Models start with a measurement range of just ±50Pa (accuracy of 0.25% of reading), up to a range of -1 to 10 bar in differential pressure. An absolute pressure version (1500 mbar) is also available.
A robust IP66 aluminium enclosure provides the protection needed in wet or dirty environments. Various pneumatic connections are available for different pipe sizes with a process manifold option for mounting isolation valves. The process manifold version incorporates all 316 stainless steel wetted parts for use with aggressive gasses.
The FCO452 has inbuilt temperature correction, configurable units and adjustable output damping. The microcontroller can apply root transformations to allow the output to give direct velocity readings from the measured differential pressure.
FURNESS CONTROL差壓變送器其他常用型號：
FURNESS CONTROL FCO352
FURNESS CONTROL FCO452
FURNESS CONTROL FCO432
FURNESS CONTROL FCO418
FURNESS CONTROL FCO354
FURNESS CONTROL FCO342
FURNESS CONTROL Transmitter NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向制造工業提供高端制造技術和設備。代理經營世界優質的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于FURNESS CONTROL差壓變送器FCO452的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for FURNESS CONTROL products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website:jjxdch.cn.
FURNESS CONTROL差壓變送器FCO452技術參數及介紹
