DUPLOMATIC泄壓閥RQM5-P系列技術參數
Maximum operating pressure | 350bar |
Maximum flow rate | 400l/min |
Ambient temperature range | -20 / +50°C |
Fluid temperature range | -20 / +80°C |
Fluid viscosity range | 10 ÷ 400 cSt |
Fluid contamination degree | According to ISO 4406:1999 class 20/18/15 |
Recommended viscosity | 25 cSt |
DUPLOMATIC泄壓閥RQM*-P系列介紹
RQM*-P閥是壓力泄壓閥，有三種標稱尺寸，流量高達500l/min。
它們是可在ISO6264底板安裝的版本。
有五種版本，允許通過電磁閥卸載總流量，最多可選擇三個壓力值。
第二和第三壓力值的調整可通過放置在主級和電磁閥之間的壓力釋放閥獲得。
它提供了一個六角形的水頭調節螺釘。根據要求，它可在主壓力控制裝置上配備一個小塊調節旋鈕。

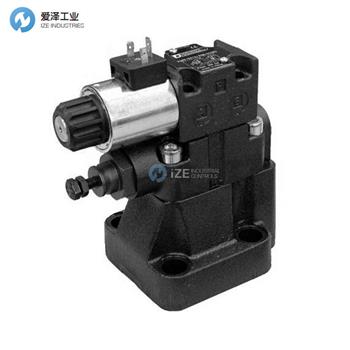

The RQM*-P valves are pressure relief valves available in three nominal sizes for flow up to 500 l/min.
They are available in ISO 6264 subplate mounting version.
Available in five versions that allow, by means of a solenoid valve, unloading of the total flow and selection up to three pressure values.
The adjustment of the second and third pressure values is obtained by a pressure relief valve placed between the main stage and the solenoid valve.
It is supplied with an hexagonal head adjustment screw. Upon request, it can be equipped with a SICBLOC adjustment knob on the main pressure control.

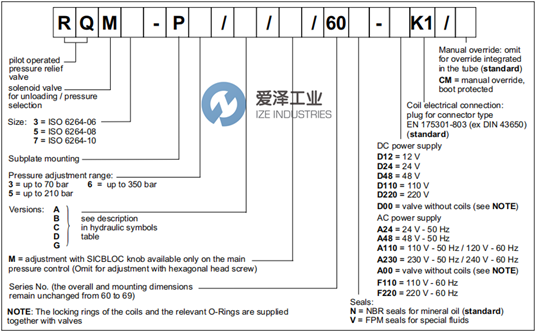

DUPLOMATIC泄壓閥RQM*-P系列選型
DUPLOMATIC泄壓閥RQM*-P系列其他常用型號：
DUPLOMATIC RQM5-P5/A/60N-D12K1
DUPLOMATIC RQM5-P5/A/60N-D24K1
DUPLOMATIC RQM5-P5/A/60N-D48K1
DUPLOMATIC RQM5-P5/A/60N-D110K1
DUPLOMATIC RQM5-P5/A/60N-D220K1
DUPLOMATIC RQM5-P5/A/60N-D00K1
DUPLOMATIC RQM5-P5/A/60N-A24K1
DUPLOMATIC RQM5-P5/A/60N-A48K1
DUPLOMATIC RQM5-P5/A/60N-A110K1
DUPLOMATIC RQM5-P5/A/60N-A230K1
DUPLOMATIC RQM5-P5/A/60N-A00K1
DUPLOMATIC RQM5-P5/A/60N-F110K1
DUPLOMATIC RQM5-P5/A/60N-F220K1
DUPLOMATIC pressure relief valves NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向制造工業提供高端制造技術和設備。代理經營世界優質的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于DUPLOMATIC泄壓閥RQM5-P5/A/60N-D24K1的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for DUPLOMATIC products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website:jjxdch.cn.
DUPLOMATIC泄壓閥RQM*-P系列RQM5-P5/A/60N-D24K1技術參數及尺寸
