AXEL LARSSON執行器AL77系列技術參數
specification | |
Type: | AL 77 210-DA – AL 77 280-DA double acting |
Markning: | The actuator is marked AL 77. |
Connection: | Valve: ISO 5211/DIN 3337 |
Operation: | 0°-90° (±3° adjustment in closed position) |
Pressure: | Max 10 bar (size 265 max. 8 bar) |
Ambient temp: | -20° - +80°C |
Operating media: | Instrument air, inert gases. |
Material | |
Cylinder | Extruded anodized aluminium |
End plate | Aluminium |
Pistons | Aluminium |
Drive shaft | Stainless steel (210-260) |
Piston sealing | Nitrile |
Corrosion protection | Anodized |
AXEL LARSSON執行器AL77系列介紹
AL77是一種用于90°閥門操作的氣動執行器。AL77可作為雙作用(DA)或單作用(SR)。AL77設計了一個內部杠桿（Scotch Yoke原理），在操作開始和結束時提供更高的扭矩。
AL 77 is a pneumatic actuator for 90° operation of valves. AL 77 is available as double acting (DA) or single acting (SR). AL 77 is designed with an internal lever (the Scotch Yoke principle) which gives a higher torque at the start and end of the operation.

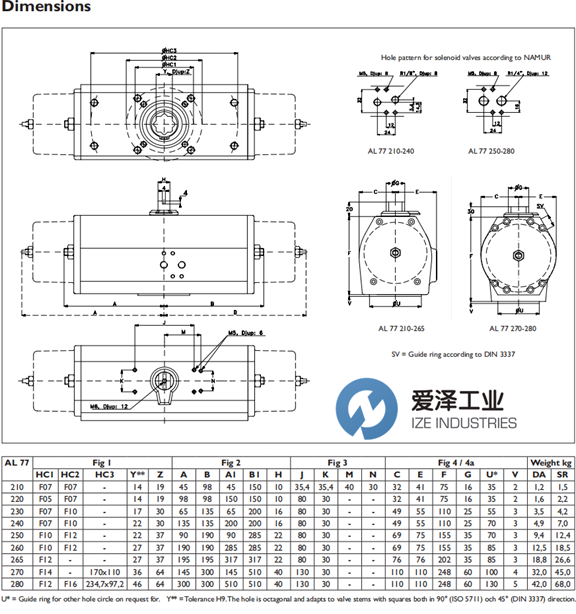

AXEL LARSSON執行器AL77系列尺寸圖
AXEL LARSSON執行器AL77系列其他常用型號：
AXEL LARSSON AL77 210-DA F05-F07/14
AXEL LARSSON AL77 220-DA F05-F07/14
AXEL LARSSON AL77 230-DA F07-F10/17
AXEL LARSSON AL77 240-DA F07-F10/22
AXEL LARSSON AL77 250-DA F10-F12/22
AXEL LARSSON AL77 260-DA F10-12/27
AXEL LARSSON AL77 265-DA F12/27
AXEL LARSSON AL77 270-DA F14/36
AXEL LARSSON AL77 280-DA F12, F16/46
AXEL LARSSON AL77 280-DA F14/27
AXEL LARSSON AL77 240-SR F10-F12/22
AXEL LARSSON AL77 250-SR F10-F12/22
AXEL LARSSON AL77 250-SR F10-F12/22
AXEL LARSSON AL77 250-SR F10-F12/22
AXEL LARSSON AL77 250-SR F10-F12/22
AXEL LARSSON AL77 260-SR F10-F12/27
AXEL LARSSON Actuator NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向制造工業提供高端制造技術和設備。代理經營世界優質的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于AXEL LARSSON執行器AL77 260-DA F10-12/27的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for AXEL LARSSON products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website:jjxdch.cn.
AXEL LARSSON執行器AL77系列AL77 260-DA F10-12/27技術參數
