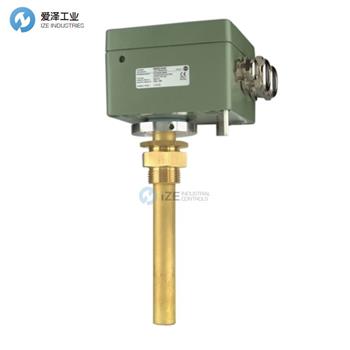

MESSKO溫度變送器ZT-F2系列技術規格
Technical Data | |
Housing/terminal box | Aluminum alloy, die-casting, RAL 7033, RAL 7038 |
Thread joint | Double thread G1B, brass, blank |
Installation | Thermometer pocket, DIN EN 50216-4 type A1 or similar |
Protection mode | IP 56 acc. DIN EN 60 529 |
Flange | Teflon |
Weight | 1.7 kg |
Cable glands | 1x M16 x 1.5 WADI; 2 x M25 x 1.5 WADI |
Connection terminals | 4 mm2 single core |
Ventilation | Via pressure compensation element |
CT nominal current | 2 A from current transformer |
Overload stability | Continuously max. 3 A (corresponds to 1.5 x CT nominal current), 12 A for 30 sec. |
Gradient adjustment | Via dip-switch |
Ambient temperature | -50 - 85° C |
Location | Indoors and outdoors, tropical proof |
Heating | Integrated in immersion tube |
Rated insulation voltage | 300 VAC, 50 Hz |
Analog output signal | Up to 2x for Pt100 / Pt1000 or up to 2x 4 - 20 mA, others on request |
Current output | 4 - 20 mA |
Power supply | min. 10 VDC - max. 30 VDC |
Load | max. 750 Ω for 24 VDC |
MESSKO溫度變送器ZT-F2系列介紹
ZT-F.2 is a temperature transmitter for TRASY2 which is required for measuring winding temperature with TRASY2. It offers quick and easy configuration of gradients via DIP switches (thermal image of winding temperature) and comes with additional analog output (4.20 mA). Optional Pt100 sensor possible.
ZT-F.2是TRASY2的溫度變送器，用于TRASY2測量繞組溫度。它通過DIP開關（繞組溫度的熱圖像）提供快速和簡單的梯度配置，并帶有額外的模擬輸出 (4.20 mA)?？蛇x Pt100傳感器。
MESSKO溫度變送器其他常用型號：
MESSKO ZTF21-CA1IBNN2
MESSKO ZTF21-ZA1PZNN2
MESSKO ZTF21-ZA1IBPZ2
MESSKO ZTF21-ZA6PZNN2
MESSKO ZTF21-ZA1IBIB2
MESSKO transformer NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向制造工業提供高端制造技術和設備。代理經營世界優質的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于MESSKO溫度變送器ZTF21-CA1IBNN2的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for MESSKO products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website: jjxdch.cn.
MESSKO溫度變送器ZT-F2系列ZTF21-CA1IBNN2技術規格
