C.E.SRL回訊開關CFIB-2-ME-05-ET技術參數
CFIB-2-ME-05-ET |
CFIB: Low Cover Version - Nr.3 3/4 "NPT. F Conduit Entries-Position Display in 3D (Standard) |
2: Nr.2 Sensors-Each with Nr.3 terminal when combined with SPST/SPDT contact or N ° 6 if with DPDT contacts |

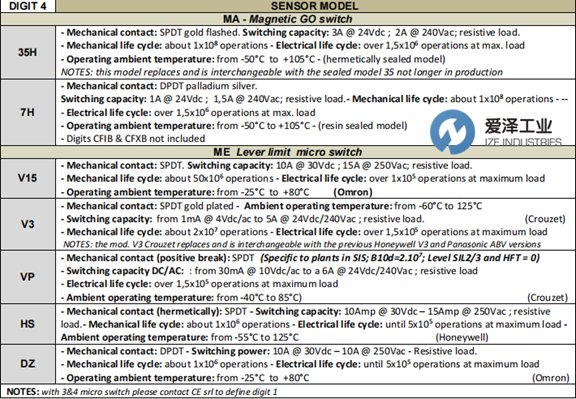

ME: Micro switch |

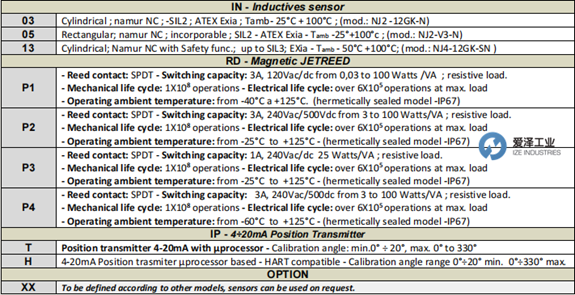

05: rectangle; Namur NC; incorporable; SIL2-ATEX Exia-Tamb-25 ° + 100 ° C; (Model: NJ2-V3-N) |

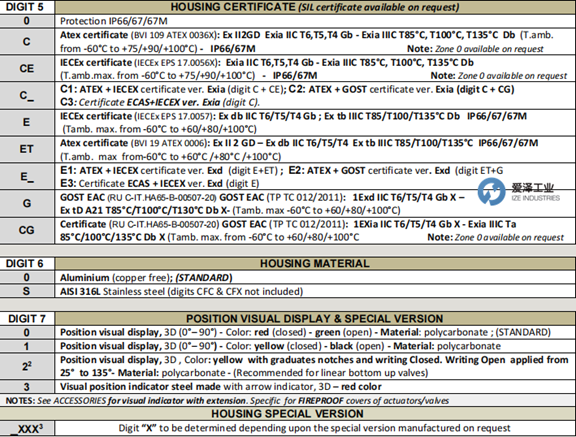

ET: ATEX Certificate (BVI 19 ATEX 0006): Ex II 2 GD-Ex DB IIC T6/T5/T4 Ex TB IIIC T85/T100/T135 ° C IP66/67/67M (T.AMB. Max from 60 ° C to + 60 ° C/+ 80 ° C/+ 100 ° C) |

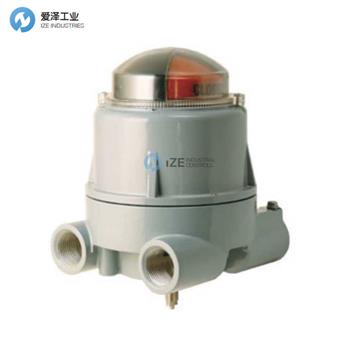

C.E.SRL閥門控制器CF系列產品介紹
材質：無銅鋁和316L不銹鋼
旨在簡化安裝和接線的解決方案
帶有2、3和4個電纜入口的版本，帶 ?” npt、?” npt、M20x1.5和M25x1.5 螺紋
從1到6個機械限位開關、REED 磁性元件、混合磁性元件和感應磁性元件
內部支持接線板和限位開關互連
適用于Exd和Exia區域的ATEX、IECEx 和 GOST EAC TR CU Ex認證
定位各種顏色的視覺指示器，專門用于防火保護
具有多種解決方案的擴展位置視覺指示器
它們可以在極端溫度的環境中使用
Material: copper-free aluminium and 316L stainless steel
Solutions designed to simplify installation and wiring
Versions with 2, 3 and 4 cable entries with ?” npt, ?” npt, M20x1.5 and M25x1.5 threads
From 1 to 6 mechanical limit switches, REED magnetics, hybrid magnetics and inductive magnetics
Internal support terminal boards and limit switch interconnection
ATEX, IECEx and GOST EAC TR CU Ex certifications for Exd and Exia areas
Position visual indicators of various colours and specific for FIREPROOF protection
Extended position visual indicators with multiple solutions
They can be used in environments with extreme temperatures
C.E.SRL閥門控制器CF系列選型
C.E.SRL閥門控制器CF系列其他常用型號：
C.E.SRL CFIB-2-ME-05-ET
C.E.SRL CFIB-1-MA-35H-C
C.E.SRL CFIB-2-RD-P5-ET-S
C.E.SRL CFIB-2-MA-35-E-0-0
C.E.SRL CFIB-2-MA-35-EX
C.E.SRL Feedback switch NEW + ORIGINAL+ ONE YEAR WARRANTY
