GO REGULATOR調節器H2-1L33Q3E4111技術參數
Code | H2-1L33Q3E4111 |
Series | [H2] HPR-2 Series |
Body material | [1] 316L stainless steel, stainless steel diaphragm |
Port configuration | [L] |
Temperature range / heating type | [3] 130°-300°F (54-149°C) |
Heater wattage | [3] 100W |
Seat material | [Q] PEEK? |
Flow coefficient (cv) | [3] 0.06 |
Outlet range | [E] 0–50 psig |
Heater block type | [4] 230 VAC |
Heater block porting | [1] Standard block |
Cap assembly | [1] Tamper-proof, standard, stainless steel |
Options | [1] TCO thermistor |
GO REGULATOR調節器HPR-2系列介紹
HPR-2 系列加熱壓力調節器旨在為進入儀器系統的樣品提供熱量。它可用于預熱液體，防止氣體凝結或在氣體分析之前蒸發液體。HPR-2 的模塊化設計包括熱交換器和壓力控制部分。壓力控制部分仿照 PR-1 減壓調節器久經考驗的設計，提供同樣出色的出口壓力穩定性。熱交換器部分由主體和熱交換元件組成。熱交換元件使用 GO Regulator 獨特的螺旋包裹篩網作為熱交換表面。該篩網具有高達 100 平方英寸的傳熱面積，精確的設計迫使所有樣品流通過元件。HPR-2 系列汽化減壓調節器均已獲得 CSA 和 ATEX 認證。該裝置的電氣元件牢固地安裝在 A、B、C、D 級導管中，確保環境和控制器之間始終有足夠的火焰路徑。通過使用可選的 TCO（熱切斷）加熱器筒，可以進一步增強安全性。此功能使設備能夠達到 T3 等級，功率高達 250 瓦（250 瓦為 CSA 的 T2C 等級）。

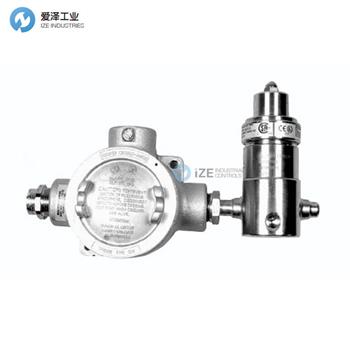

The HPR-2 Series heated pressure regulator is designed to supply heat to samples entering instrumentation systems. It can be used to preheat liquids, to prevent condensation of gases or to vaporize liquids prior to gas analysis. The modular design of the HPR-2 consists of heat exchanger and pressure control sections. The pressure control section is patterned after the time proven design of the PR-1 pressure reducing regulator and provides the same excellent outlet pressure stability. The heat exchanger section is made up of a body and heat exchange element. The heat exchange element uses GO Regulator’s unique spiral wrapped screen as the heat exchange surface. This screen has up to 100 square inches of heat transfer area and precise design forces all sample fl ow to pass through the element. The HPR-2 Series of vaporizing pressure reducing regulators are both CSA and ATEX approved. The electrical components of this unit are securely housed in a Class A, B, C, D condulet assuring that there is always an adequate fl ame path between the environment and the controller. Safety considerations can be further enhanced by using the optional TCO (Thermal Cut Out) heater cartridge. This feature enables the unit to boast a T3 rating with up to 250 watts of power (250w is rated T2C for CSA).

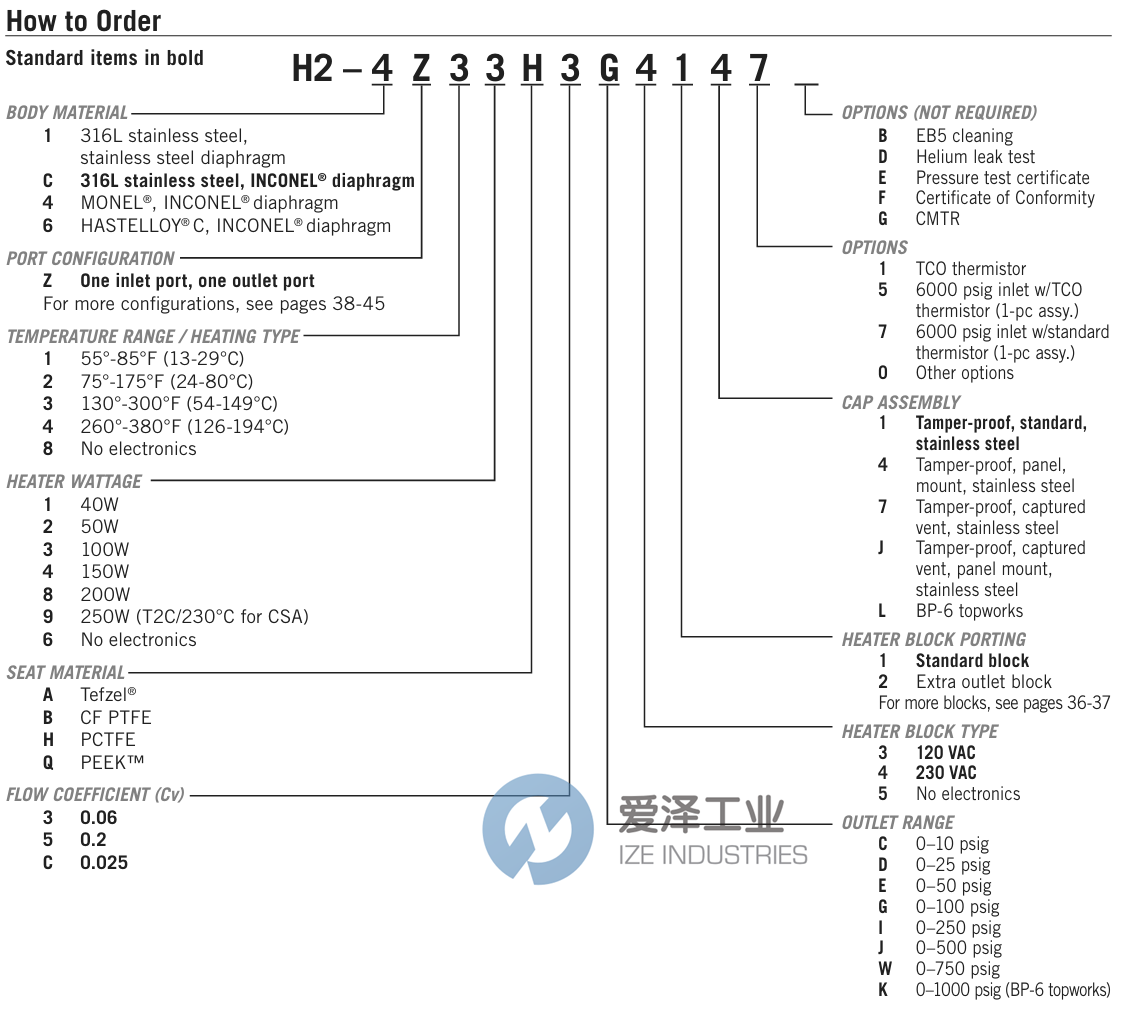

GO REGULATOR調節器HPR-2系列選型
GO REGULATOR調節器HPR-2系列其他常用型號：
GO REGULATOR H2-1Z21A3E9111
GO REGULATOR H2-1Z23C3I421B
GO REGULATOR H2-1Y24Q3E4111
GO REGULATOR H2-1L33Q3E4111
GO REGULATOR H2-1Z33Q3G411
GO REGULATOR H2-1Z34Q3E4111
GO REGULATOR H2-1Z39B3E4111
GO REGULATOR H2-1Z44A3E4111
GO REGULATOR H2-1Z55B3E111
