TESCOM調節閥64-3600系列技術參數
Maximum Inlet Pressure | 600 or 3500 psig / 41.4 or 241 bar |
Outlet Pressure Ranges | 30, 60, 100, 150 psig / 2.1, 4.1, 6.9, 10.3 bar |
Design Proof Pressure | 150% of maximum rated |
Inboard Leak Rate | 1 x 10-9 atm cc/sec He |
Operating Temperature | Operating Temperature |
Flow Capacity | Cv = 0.15 or 0.06 |
Body | 316L Stainless Steel Electropolish or 316L VAR Stainless |
Diaphragm | Nickel Alloy (Hastelloy?) |
Valve Seat | PCTFE, PTFE or Polyimide (Vespel?) |
Stem and Valve Spring | 316 Stainless Steel |
Remaining Parts | 316 Stainless Steel or Nickel Alloy (Hastelloy?) |
Internal Surface Finish | 10 Ra microinch / 0.25 micrometer |
Connections | Welded female or male VCR? |
Cleaning | DI water electronic grade cleaned and ES500 Particle Certified for internal electropolish models |
Internal Volume | 12 cc |
Weight | 2 lbs / 0.9 kg |

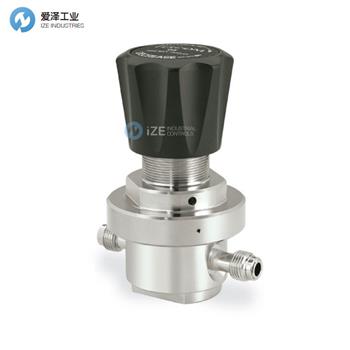

TESCOM調節閥64-3600系列介紹
TESCOM 64-3600 系列超高純度、高靈敏度減壓調節器提供低下垂、系緊隔膜設計、10 Ra / 0.25 微米表面光潔度和可用的 Hastelloy內件。入口壓力為600或3500 psig / 41.4或241 bar，出口壓力高達150 psig / 10.3 bar。
TESCOM 64-3600 Series ultra high purity, highly sensitive pressure reducing regulator offers a low droop,tied diaphragm design, 10 Ra / 0.25 micrometer surface finish with available Hastelloy? trim. Inlet pressures are 600 or 3500 psig / 41.4 or 241 bar with outlet pressure up to 150 psig / 10.3 bar.

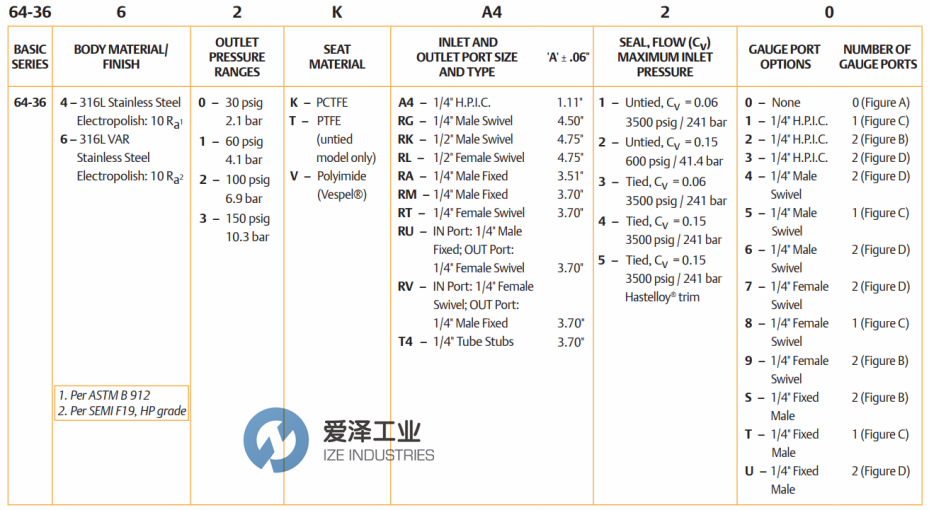

TESCOM調節閥64-3600系列選型
TESCOM調節閥64-3600系列其他常用型號：
TESCOM 64-3662TRV20-067
TESCOM 64-362KA420
TESCOM Pressure Reducing Regulators NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向制造工業提供高端制造技術和設備。代理經營世界優質的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于TESCOM調節閥64-3662TRV20-067的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for TESCOM products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website:jjxdch.cn.
TESCOM調節閥64-3600系列64-3662TRV20-067介紹及選型
