AMC伺服驅動器DVC250A060技術參數
SPECIFICATIONS | |
Current Continuous (A) | 150 |
Current Peak (A) | 250 |
DC Supply Voltage (VDC) | 20 - 54 |
Network Communication | CANopen |
Functional Safety | Safe Torque Off (STO) |
Size (mm) | 203.2 x 139.7 x 59.7 |
Weight (g) | 1638 |
AMC伺服驅動器DVC250A060產品介紹
DVC250A060 DigiFlex Performance 數字伺服驅動器設計用于驅動有刷、無刷和交流感應伺服電機，外形緊湊，非常適合嵌入式應用。 這種全數字驅動器可在扭矩、速度或位置模式下運行，并采用空間矢量調制 (SVM)，與傳統 PWM 相比，可提高總線電壓利用率并減少散熱。
DVC250A060 伺服驅動器具有用于驅動器配置和設置的單個 USB 接口。 CANopen 接口可用于聯網應用程序中的運行時操作。
DVC250A060 伺服驅動器封裝在堅固的防水 IP65 外殼中，非常適合移動電動汽車應用。 DriveWare 7 中有多種油門輸入命令類型和配置可供選擇。
所有驅動器和電機參數都存儲在非易失性存儲器中。
The DVC250A060 DigiFlex Performance digital servo drive is designed to drive brushed, brushless, and AC induction servomotors from a compact form factor ideal for embedded applications. This fully digital drive operates in torque, velocity, or position mode and employs Space Vector Modulation (SVM), which results in higher bus voltage utilization and reduced heat dissipation compared to traditional PWM.
DVC250A060 servo drives feature a single USB interface used for drive configuration and setup.The CANopen interface can be used for runtime operation in networked applications.
DVC250A060 servo drives are packaged in a ruggedized, watertight IP65 rated enclosure ideal for mobile electric vehicular applications. Multiple throttle input command types and configurations are available for selection within DriveWare 7.
All drive and motor parameters are stored in nonvolatile memory.

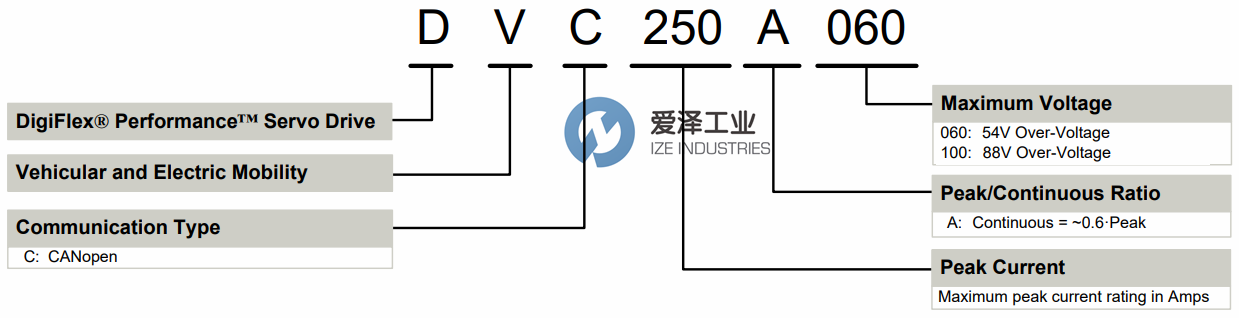

AMC伺服驅動器DVC250A060規格
AMC伺服驅動器其他常用型號：
AMC DVC250A060
AMC DVC200A100
AMC DPMANIU-030A800
AMC DPCANIA-030A800
AMC DPCANIE-030A800
AMC DPRANIE-030A800
AMC DPRANIR-030A800
AMC DPEANIU-030A800
AMC DPPANIU-030A800
AMC DPRAHIE-030A800
AMC DPRANIE-C060A400
AMC DPCANIE-C060A400
AMC DPPANIU-C060A400
AMC DPEANIU-C060A400
AMC DPCANIA-C060A400
AMC server Driver NEW + ORIGINAL+ ONE YEAR WARRANTY
