NAGANO KEIKI轉換器KG20-M5C型號是KG20-15C 20-100Kpa的升級型號
NAGANO KEIKI轉換器KG20系列技術參數
Installation environment: | Install in location where no gases or liquids may exist that have the potential to become flammable or ignitable under normal operating condition |
Mounting: | Surface mounting |
Connection: | Rc 1/4，1 /4NPT Female |
Wetted parts: | A5056BD, Chloroprene (CR), C3604BD,SUS304, C5191P-H |
Input signal: | 4 to 20mA DC |
Operating temperature range: | -10°C to 50°C (Non-freezing or condensing) |
Input resistance: | Approx. 200Ω to 250Ω |
Supply air pressure: | 140 ± 10kPa |
Air consumption: | Approx.3L/minute (Normal) [At 50% balance] |
Output signal: | 20 to 100 kPa |
Accuracy: | +0.75%F.S. or ± 1.5%F.S. |
Enclosure: | Indoor use |
Case finishing: | Gray crystal paint |
Weight: | Approx. 2.2kg |

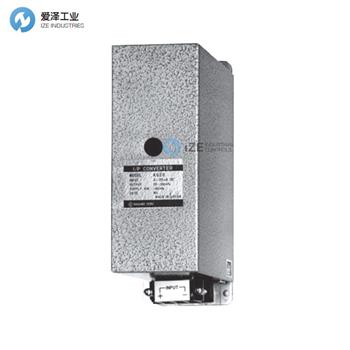

NAGANO KEIKI轉換器KG20系列介紹
該 KG20 I/P 轉換器用于操作氣動操作單元，例如隔膜式控制閥，它將 4 至 20mA 的直流信號電流轉換成與其成比例的 20 至 100kPa 的信號壓力。
This KG20 I/P Converter is used when operating the pneumatic operating unit such as a diaphragm operated control valve, which converts the 4 to 20mA DC signal current into a signal pressure of 20 to 100kPa in proportion to it.

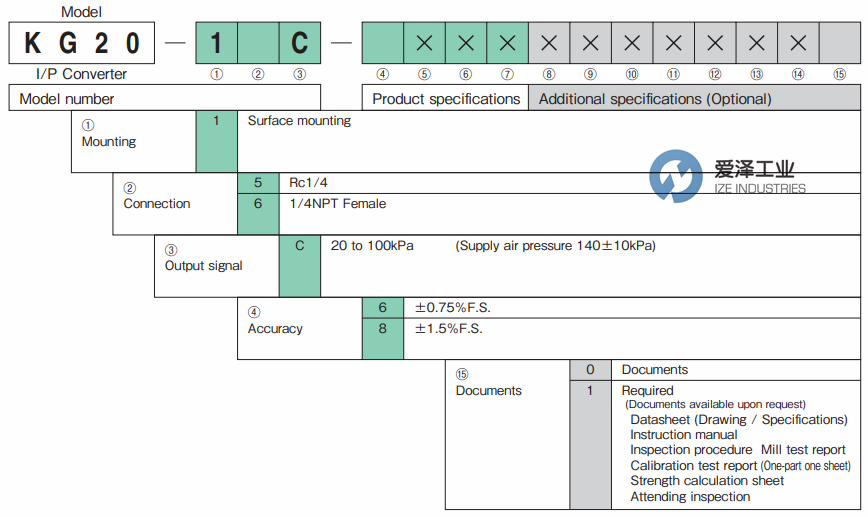

NAGANO KEIKI轉換器KG20選型
NAGANO KEIKI轉換器KG20系列其他常用型號：
NAGANO KEIKI KG20-M5C
NAGANO KEIKI KG20-15C
NAGANO KEIKI KG20-16C
NAGANO KEIKI converter NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向制造工業提供高端制造技術和設備。代理經營世界優質的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于NAGANO KEIKI轉換器KG20-M5C的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for NAGANO KEIKI products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website:jjxdch.cn.
NAGANO KEIKI轉換器KG20系列KG20-M5C介紹及選型
