BETTIS閥門執行器G系列技術參數
Power Source | Pneumatic |
Product Type | Pneumatic Actuator |
Actuation | Fail-Safe, Quarter-turn, Spring-Return, Double-Acting |
Certifications | ATEX, PED, (CE), SIL capable, NACE,TRCU/EAC/GOST, SHELL DEP, ABS |
Control Type | On/off |
Valve Type | Ball, Butterfly, Plug, Triple Offset Valves, Other Quarter-Turn Devices |
Operating Temperature | Standard range: -20°F to +200°F (-29°C to +93°C). Optional range: to -40°F (-40°C) or to +350°F (+177°C) |
Torque/Thrust | Spring-return models in excess of 3,000,000 lbs-in (339,000 Nm), Double-acting 12,581 - 6,000,000 lbs-in (1420 - 678,000 Nm) |
Operating Pressure | Up to 220 psig (14 Bar) |
Operating Pressure | Pneumatic 40-220 psig (3-14 Bar), Hydraulic up to 5,000 psig (345 Bar) |
BETTIS閥門執行器G系列介紹
Bettis G 系列氣動、閥門執行器是一種獨特且可靠的執行器，用于操作球閥、蝶閥或旋塞閥以及風閥和其他 90 度旋轉機構。適用于要求嚴格的 SIL 應用。
模塊化設計提高效率減少磨損延長壽命
Tension-Lok；裝置可靠地鎖定彈簧模塊以允許其安全拆卸和安裝，消除彈簧力的意外釋放
符合 PED 97/23/EC 標準，可滿足壓力安裝容器的嚴格要求
符合 IP66 和 IP67M 浸沒和高壓水浸測試規范，并提供卓越的進水和腐蝕保護
提供多種配置，采用模塊化設計，可實現安全的現場維護并降低庫存成本
可互換的電源和彈簧模塊，用于快速反轉故障安全模式
適用于需要 SIL 環境的苛刻應用

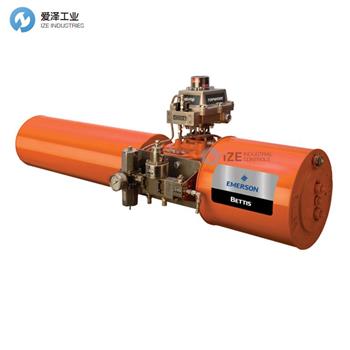

The Bettis G-Series pneumatic, scotch yoke, valve actuator is a highly unique and reliable actuator for operating ball, butterfly or plug valves along with louvers, dampers and other 90 degree rotating mechanisms. Suitable for use in demanding SIL-required applications.
Consistently operates in challenging environments, hostile environments, and when power is challenged
Modular design improves efficiency reduces wear extends life
Patented Tension-Lok; device positively locks the spring module to allow its safe removal and installation, eliminating accidental release of the spring force
PED 97/23/EC compliant to meet the stringent requirements of pressure mounting vessels
Meets both IP66 and IP67M specifications for submergence and high pressure water deluge test and offers superior water ingress and corrosion protection
Offers multiple configurations, with a modular design that enables safe field maintenance and reduced inventory costs
Interchangeable power and spring modules for quick reversal of the fail-safe mode
Suitable for use in demanding applications requiring SIL environment
BETTIS閥門執行器G系列其他常用型號：
BETTIS G01012DA
BETTIS G2014DA
BETTIS G7028DA
BETTIS G5020DA
BETTIS G5016DA
BETTIS G3012DA
BETTIS G7028DA
BETTIS G3012DA
BETTIS G5024DA
BETTIS valve actuator NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向制造工業提供高端制造技術和設備。代理經營世界優質的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于BETTIS閥門執行器G01012DA的疑問，請隨時與我們電聯，（021-3100 6702），我們將盡全力解決您的問題。
If you have any question for BETTIS products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website: jjxdch.cn.
BETTIS閥門執行器G系列G01012DA技術參數及介紹
