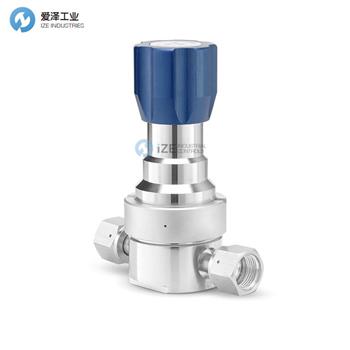

ROTAREX調壓閥RX2200系列技術參數
Specifications | |
Max. inlet pressure | 240 bar |
Outlet pressure | 3/8/10/15/25/50 bar |
Temperature range | -20°C to +65°C |
Flow capacity (cv) | 0.2 |
Burst pressure* | 300% of operating pressure |
Proof pressure* | 150% of operating pressure |
Supply pressure effect i* | 1.35 bar / 100 bar |
Certified max. helium outboard leak rate | ≤ 1 x 10-9 mbar.l/s |
Certified max. helium across the seat leak rate (at max. pressure) | ≤ 1 x 10-7 mbar.l/s |
Certified max. helium inboard leak rate (at max. pressure) | ≤ 1 x 10-9 mbar.l/s |
ROTAREX調壓閥RX2200系列介紹
進行了100% 功能性和氦氣泄漏測試
Hastelloy隔膜
內部彈簧和無螺紋可滿足最高的 UHP 要求
在潔凈室中組裝、測試和包裝：ISO 4 級
用于完全可追溯性的單獨序列號
提供耐腐蝕內部選項：Hastelloy提升閥
根據 SEMI F19 UHP 等級的電解拋光表面粗糙度
可提供潤濕區域的涂層選項
316L VAR 不銹鋼雙熔體，每個 SEMI F20 選項可用
流體特定閥座材料作為標準選項
額外的多端口選項
100% Functional & Helium Leak Test performed
Hastelloy diaphragm
Internally spring- and threadless for highest UHP requirements
Assembling, testing & Packaging in cleanroom: Class ISO 4
Individual serial number for full traceability
Corrosion resistant internal option available: Hastelloy poppet
Electropolished surface roughness per SEMI F19 UHP Grade
Coating option of wetted areas is available
316L VAR stainless steel double melt per SEMI F20 option available
Fluid specific seat material as standard options
Additional multi-port options

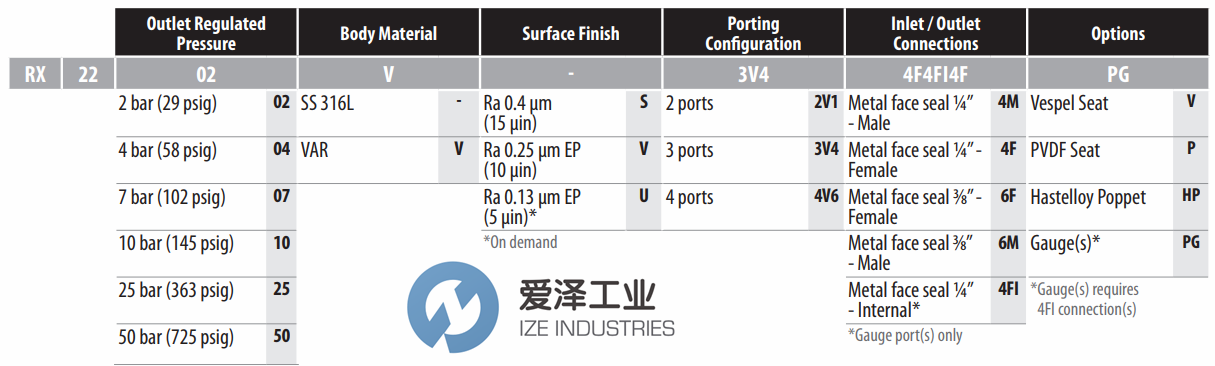

ROTAREX調壓閥RX2200系列選型
ROTAREX調壓閥其他常用系列：
ROTAREX RX1000
ROTAREX RX2200
ROTAREX RX2400
ROTAREX RX2500
ROTAREX RX2225V2V16F6F
ROTAREX pressure regulators NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向制造工業提供高端制造技術和設備。代理經營世界優質的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于ROTAREX調壓閥RX2225V2V16F6F的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for ROTAREX products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website: jjxdch.cn.
ROTAREX調壓閥RX2200系列RX2225V2V16F6F技術參數及選型
